Samsung SSD 970 EVO Plus 1TB Review


Samsung’s SSD970 EVO Plus comes in a compact black box with a large image of the drive on the front. On the top right hand side of the box we find a sticker displaying the drive’s 1TB capacity.

The rear of the box has a multilingual information panel giving the web address for more detailed warranty information. To the right of this is a reminder that the drive has a 5-year limited warranty.

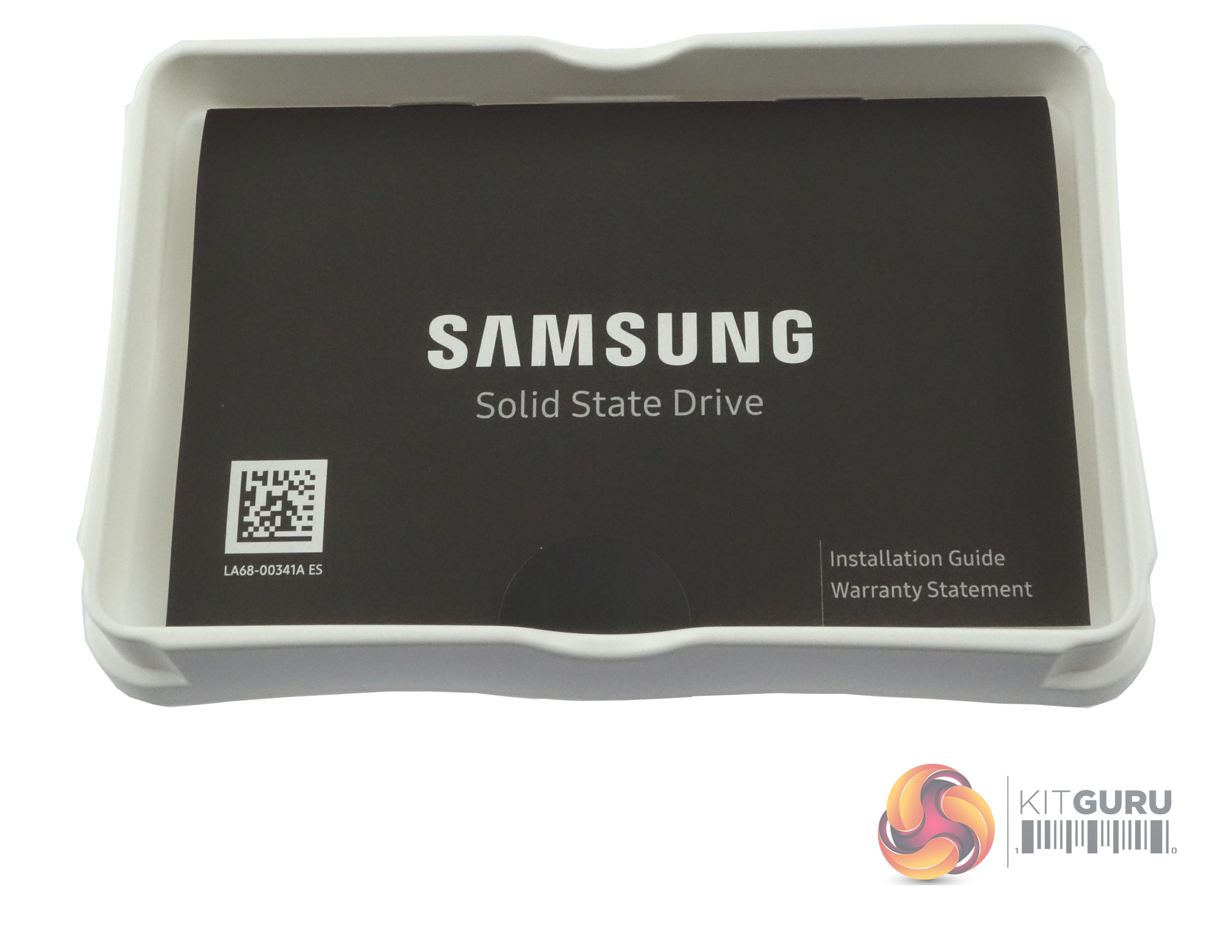

The drive itself comes in a plastic shell for extra protection. This outer shell fits into another piece of plastic which is home to the installation/warranty guide.


The SSD970 EVO Plus is built on a single sided M.2 2280 format PCB. The sticker on the rear of the drive has a built in copper layer to aid heat dissipation.


At one end of the PCB sits the Phoenix controller, while sitting at the other end of the PCB are two 256Gb die 9*-layer V-NAND TLC NAND packages. In between the NAND and the controller there is a 1GB LPDDR4 DRAM IC to take care of caching duties.

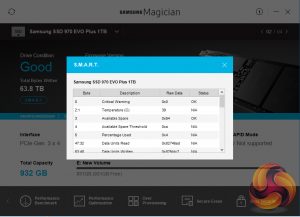

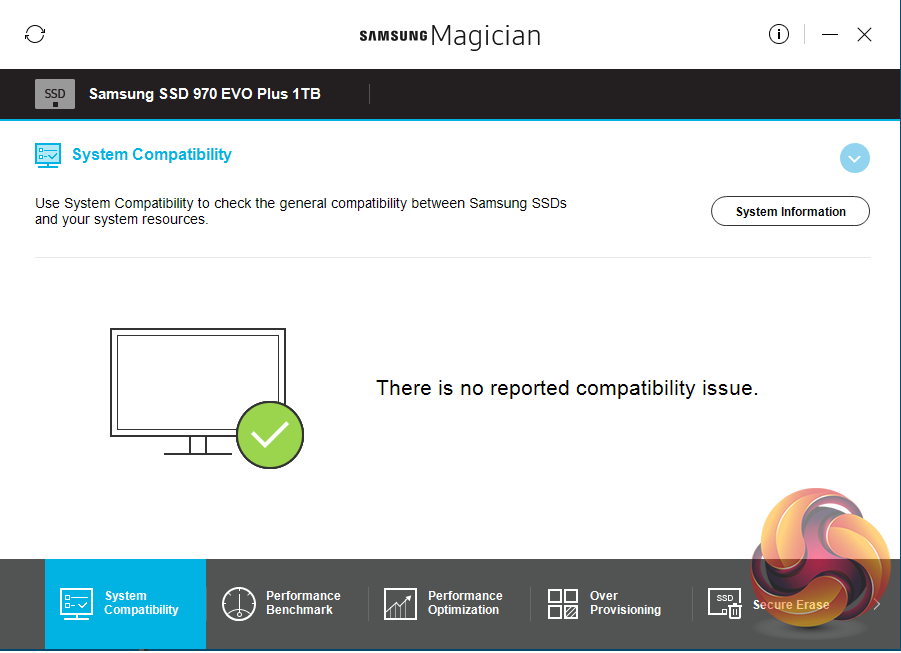

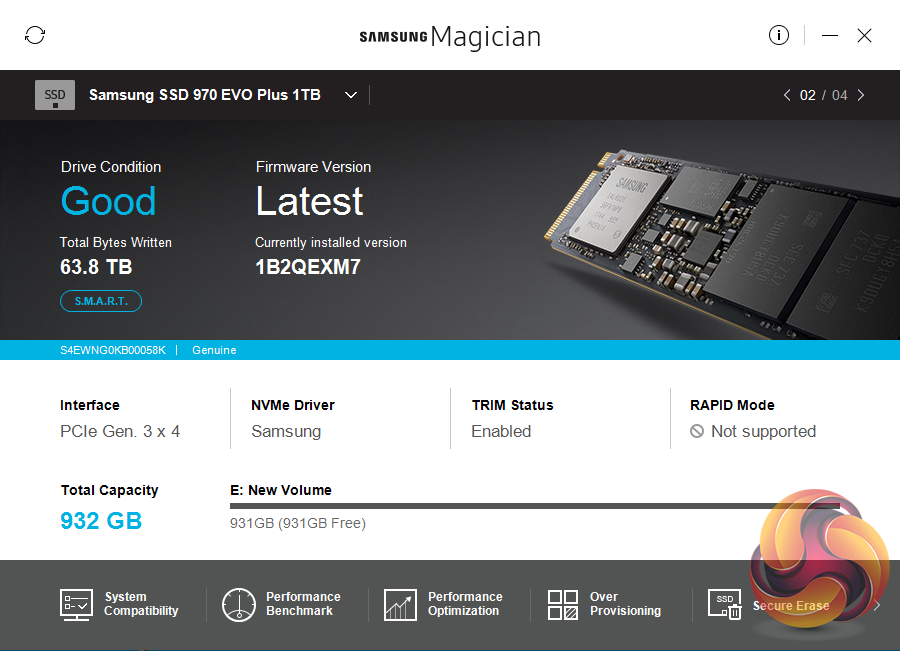

Samsung’s SSD management utility goes by the name of Magician and can be downloaded from Samsung’s website. The latest v5.3.0 version brings support for the SSD 970 EVO Plus series.

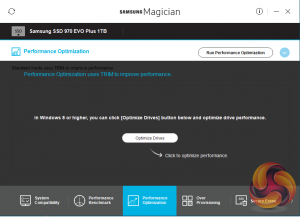

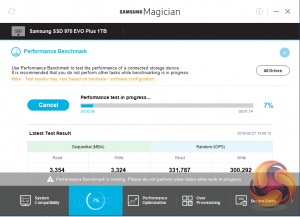

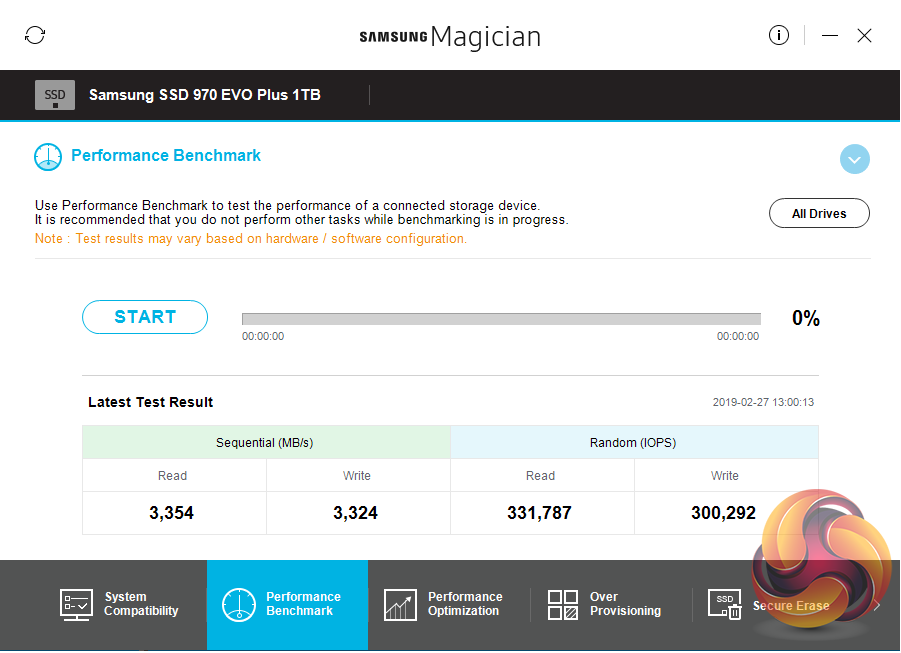

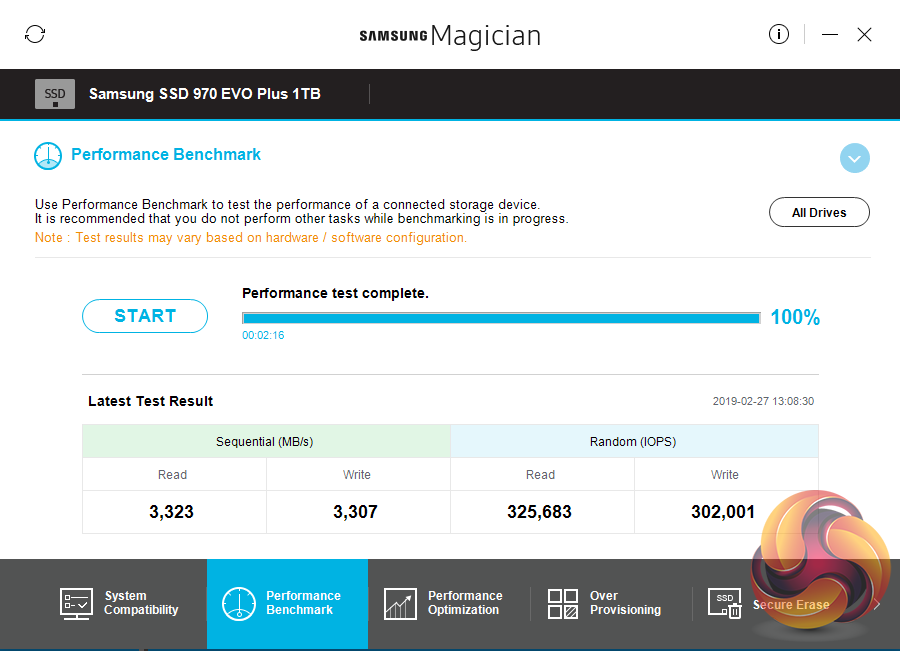

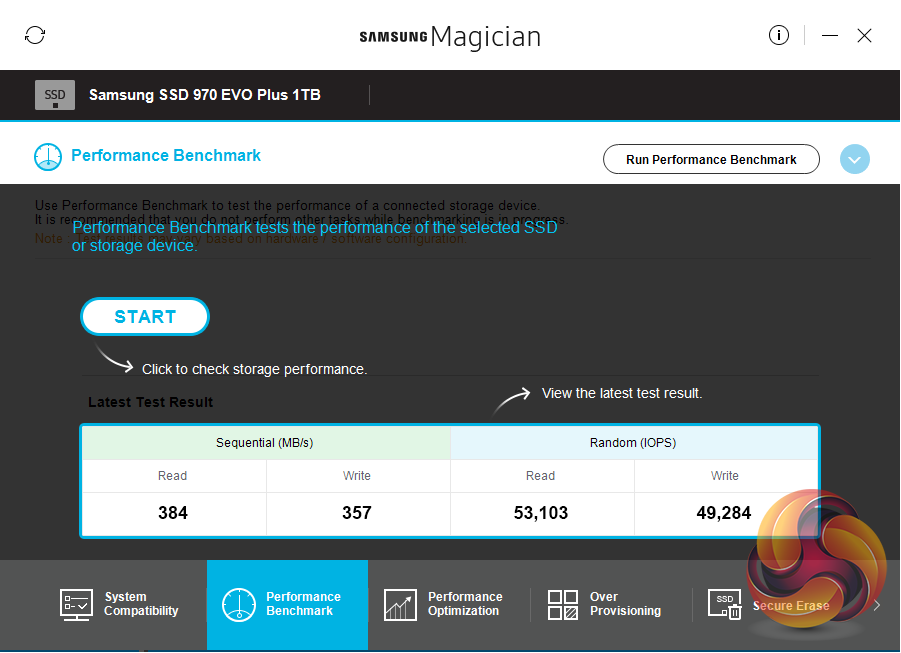

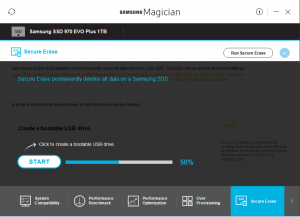

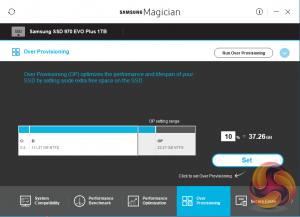

Magician allows you to do most maintenance jobs you may need to do with a SSD; updating firmware, optimise performance, adjust the Over Provisioning, enable data security (the drive supports AES 256-bit full disk encryption, TCG/Opal V2.0, and Encrypted Drive -IEEE1667 (MS eDrive ) ) and securely erase the drive. Magician also features a built-in benchmark tool.

The one thing missing from Magician is any form of integrated data migration tool but you can download a separate data migration tool from Samsung’s website.
