WD Red SN700 1TB NVMe SSD Review

1. Introduction2. WD Red SN700 1TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Random Read v QD Performance9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. Performance Stability15. Drive Temperature16. Real Life File Testing17. Closing Thoughts18. View All Pages

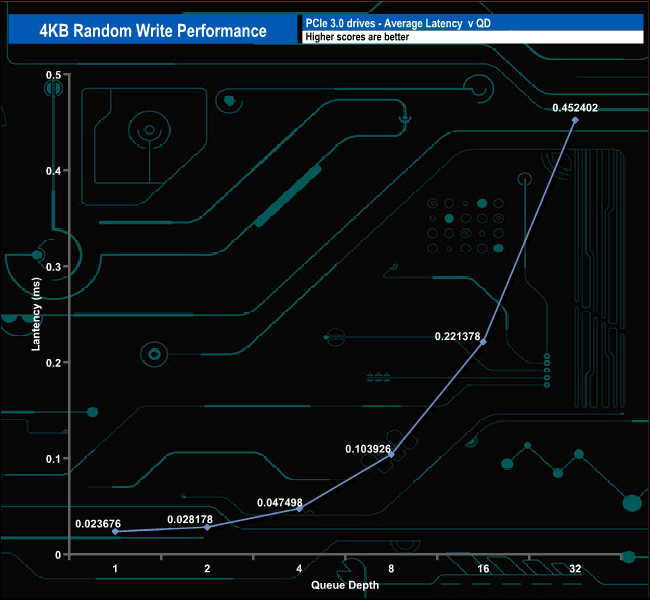

We tested the 4K random write performance of the drive through a range of queue depths. The setup for the tests is listed below.
Transfer Request Size: 4KB, Outstanding I/O: 1-32.

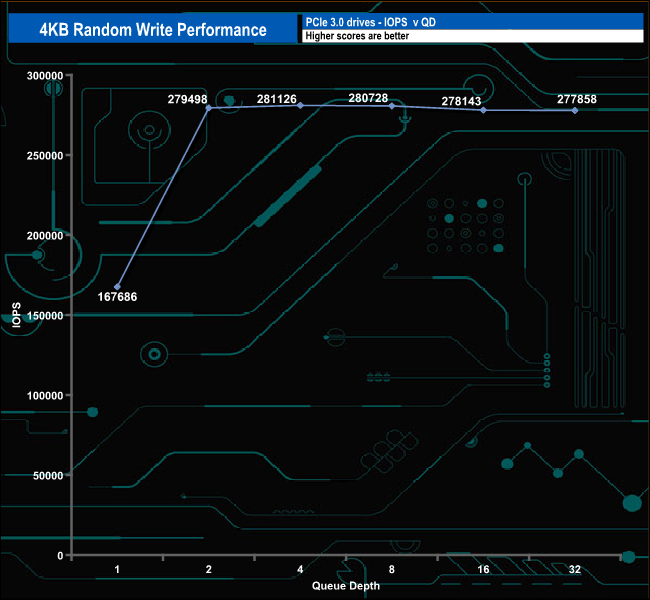

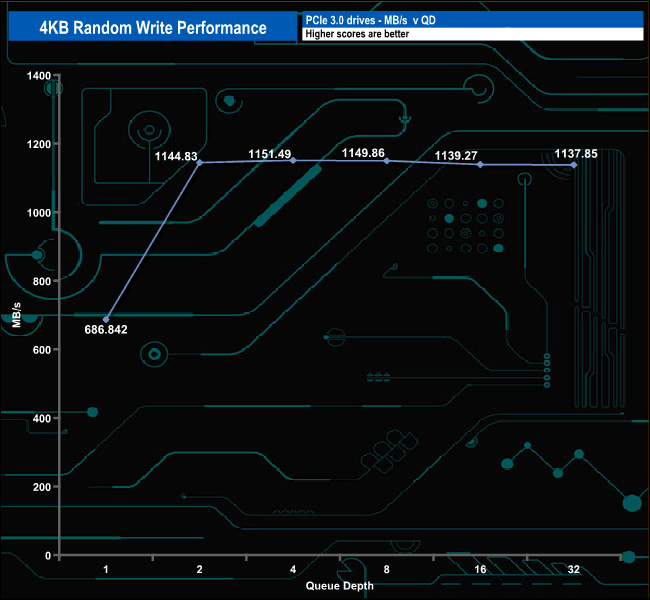

When it comes to our 4K random write tests, the drive peaked at QD4 with a test result of 281,126 IOPS before slowly dropping back as the queue depth deepens to finish the test run at QD32 with a figure of 277, 858 IOPS (1,137.85MB/s) and as with the random read tests, our random write results were some way distant of the official 560,000 IOPS.

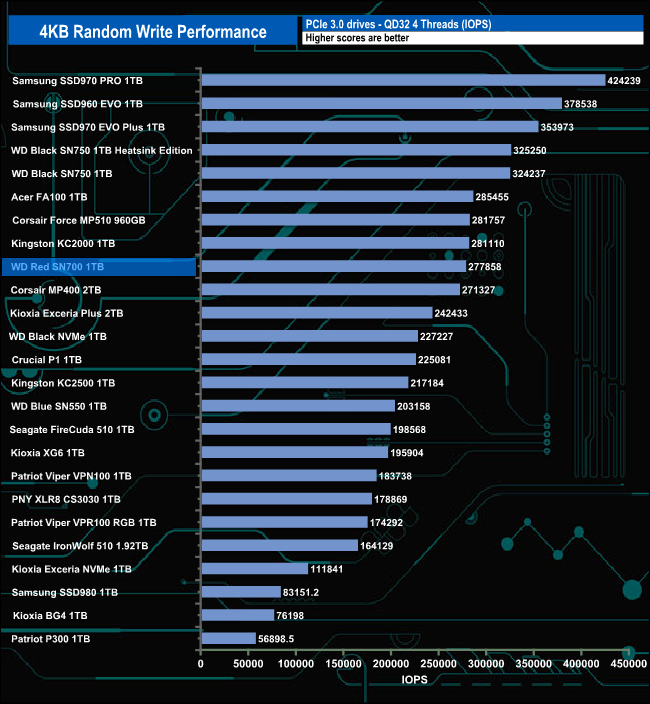

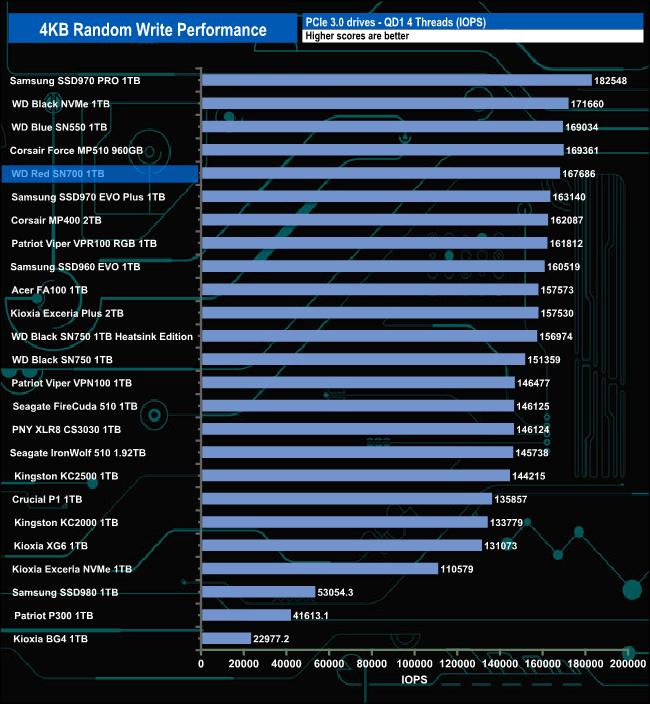

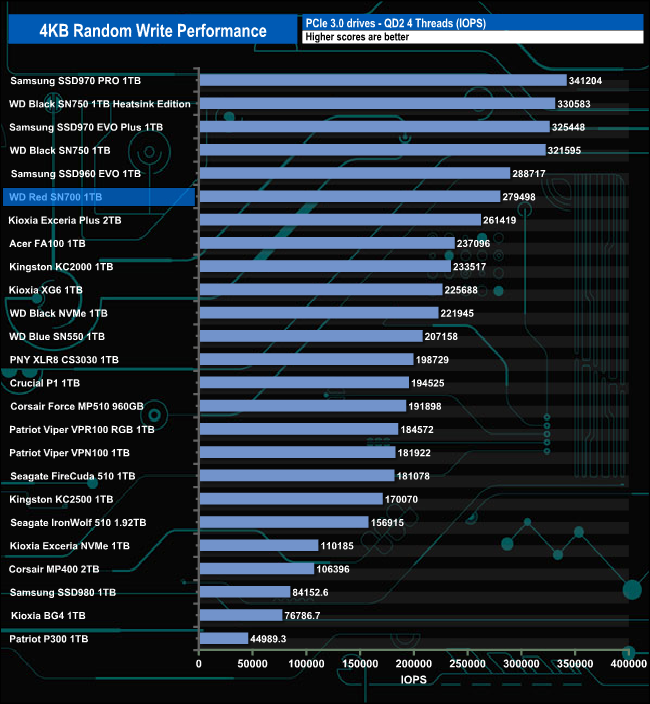

4K Random Write v QD Performance compared.

The drive holds its position in our random write results charts at the lower queue depths (1-4) before losing ground on drives around it at QD32 at the end of the test run.
