AIO Watercooler Challenge – 6 Way Round-up

The second cooler from Corsair, the H100i V2 retails at £107.99.

Corsair say ‘the Hydro Series H100i v2 is an extreme performance, all-in-one liquid CPU cooler for cases with 240mm radiator mounts.'

Specifications

  • Intel™ LGA 1150, 1155, 1156, 1366, 2011, 2011-3
  • AMD™ sockets FM1, FM2, AM2, AM3
  • Radiator dimensions: 276mm x 125mm x 30mm
  • Fan dimensions: 120mm x 120mm x 25mm
  • Fan speed: 2435 +/- 10% RPM
  • Fan airflow: 70.69 CFM
  • Fan static pressure: 4.65 mmH2O
  • Fan noise level: 37.7 dB(A)

12 3 4

5 6 7 8

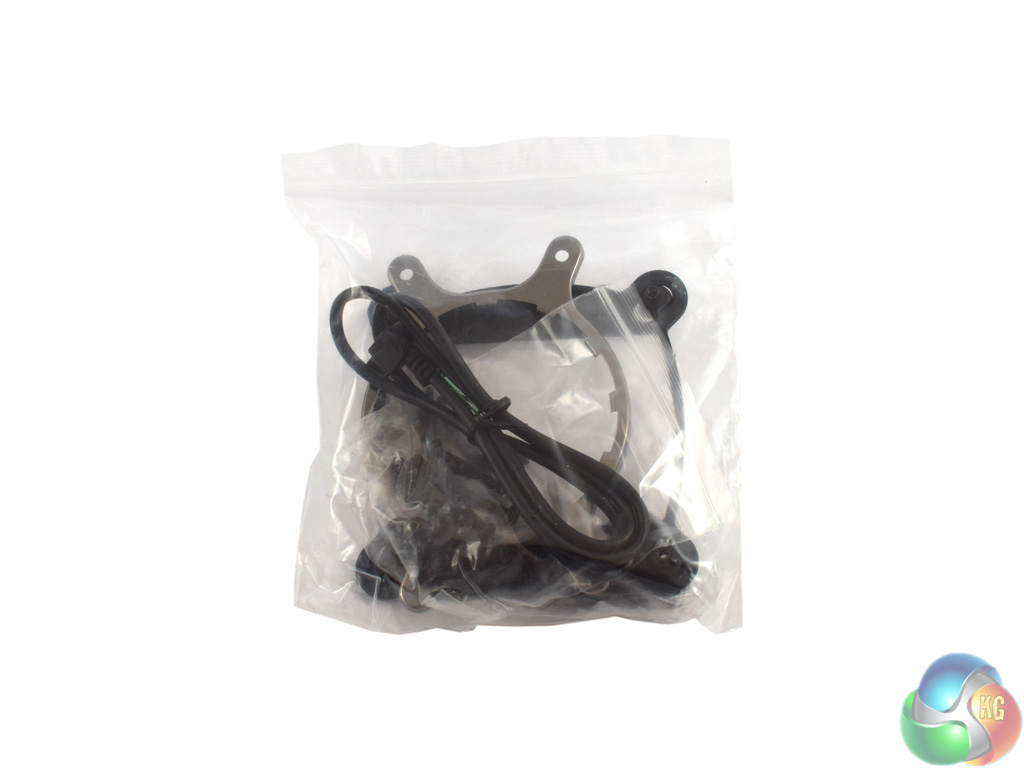

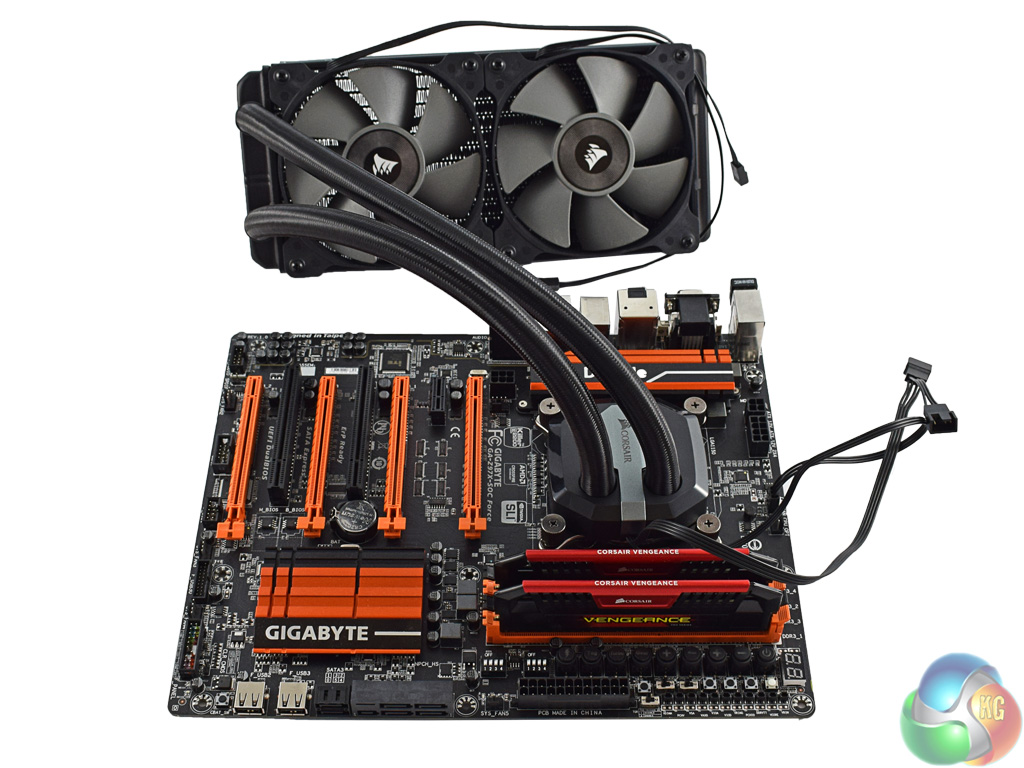

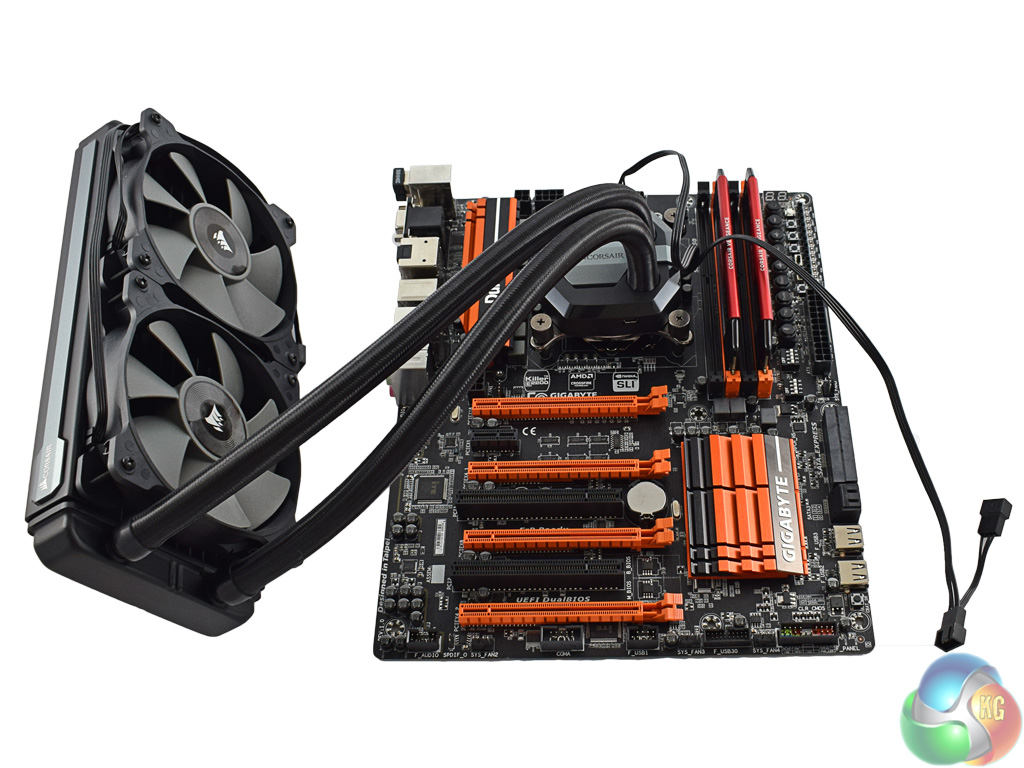

Again, the H100i V2 uses the same mounting process as the H80i V2 and the Arctic Liquid Freezer. It is simply a backplate, four standoffs and then four thumbscrews which lock the pump in place.

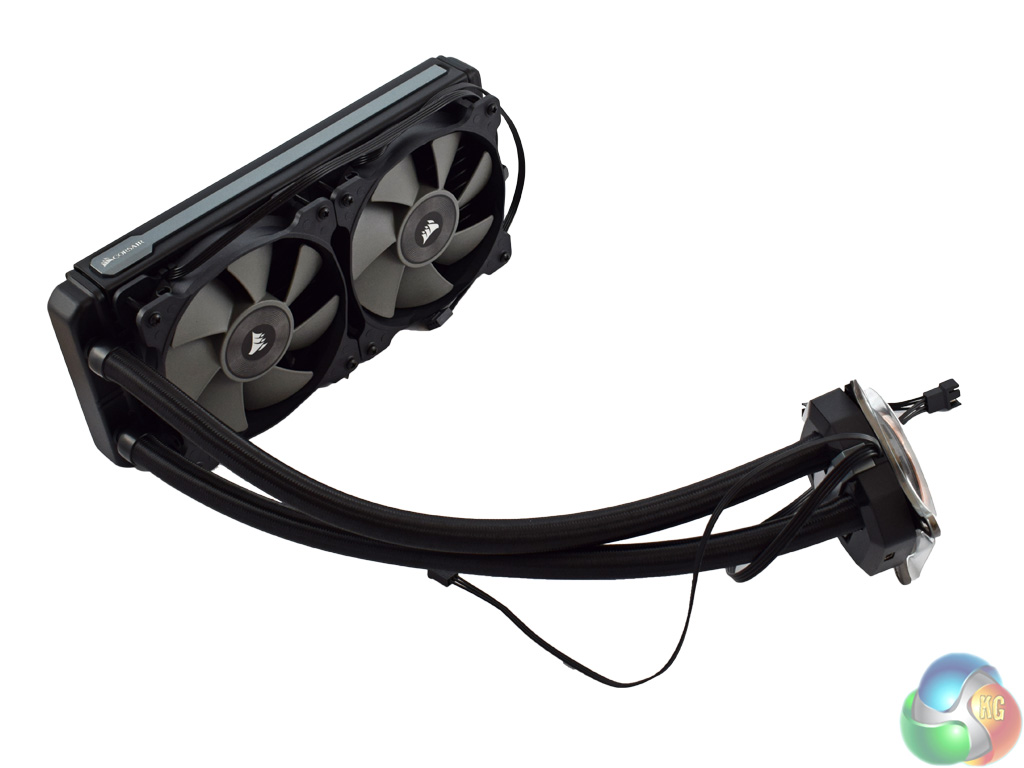

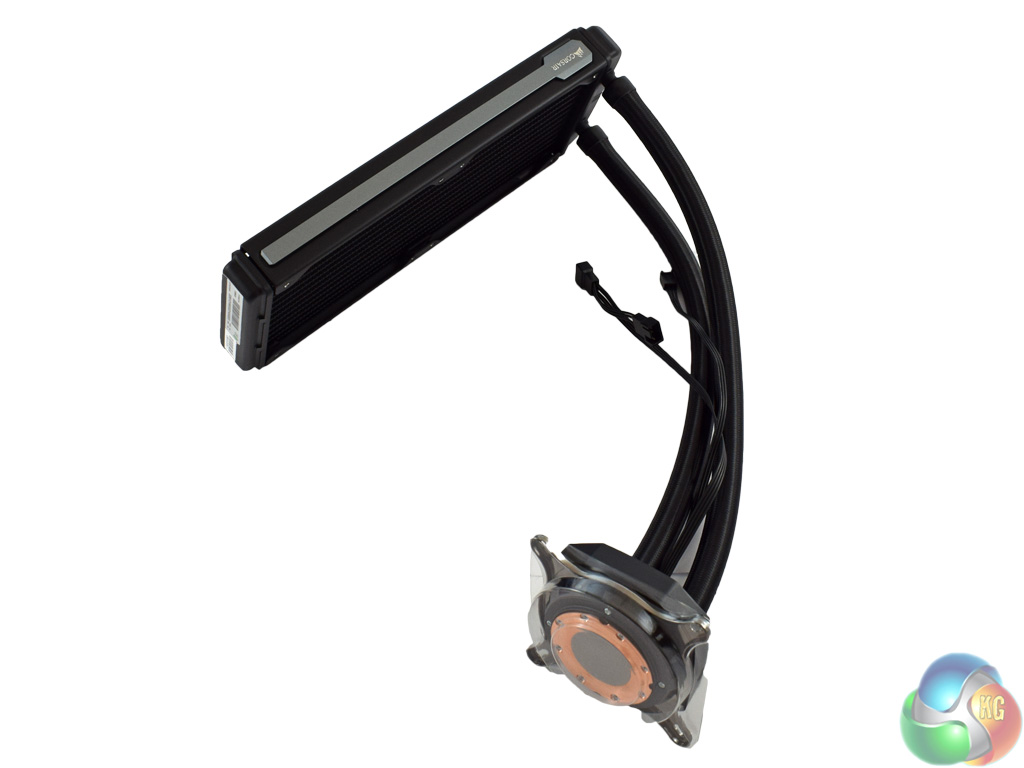

I must admit, the H100i V2 is certainly the best-looking AIO on test. The pump has an LED which can be configured via Corsair Link, while the radiator has a sleek, metallic grey strip running along it which looks very stylish.

Just as with the H80i V2, I did not use Corsair Link to test the H100i V2. Instead, both fans were plugged directly into the motherboard.

Testing

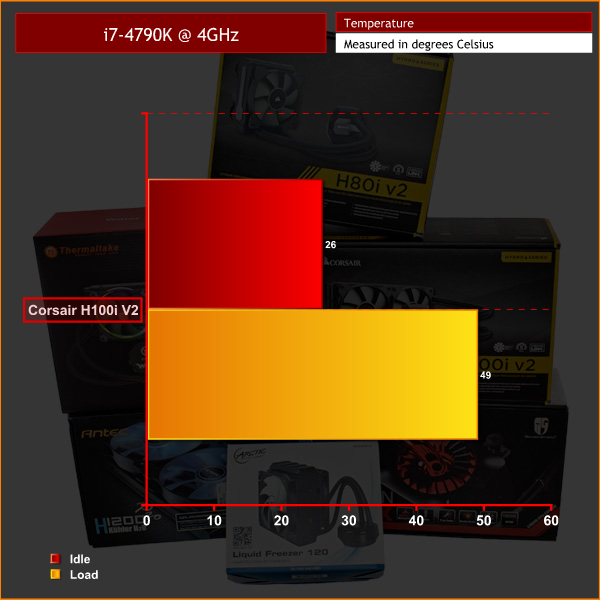

stock

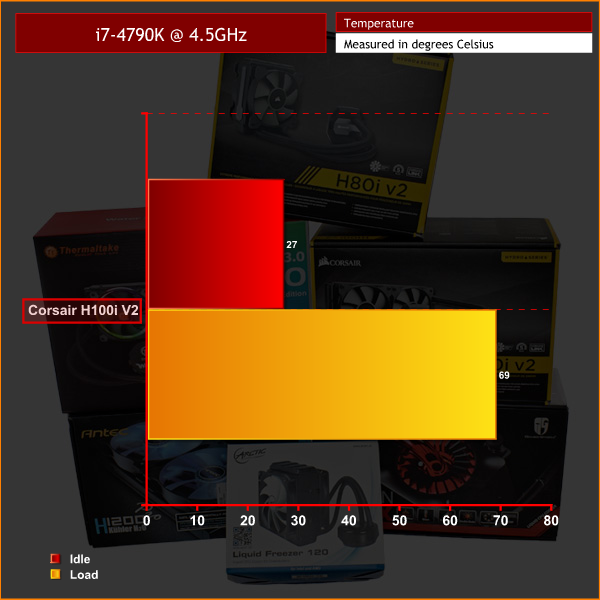

OC

The H100i V2 comes in first in both tests today. This indicates very strong performance from the 240mm radiator, especially the overclocked CPU temperature of 69 degrees. The H100i V2 will definitely be able to keep your CPU in check no matter what sort of overclock you have got configured.

I found noise levels were about the same as the H80i. After-all, they have the same two fans and I am sure the pump technology is the same. This means the pump noise can be irritating at idle, and the fans are certainly noticeable at full speed.

Again, though, you will be able to configure a custom fan profile using the Corsair Link software. This would undoubtedly reduce fan speeds and noise.

You can currently pick one up from OverclockersUK for £107.99 HERE.

MUST-HAVE2

KitGuru says: The Corsair H100i V2 wins our ‘must have' award for topping the charts in both our performance tests. If you want an AIO to keep your CPU as cool as possible, the H100i V2 is the one to get.
