ASUS ROG STRIX B550-I Gaming Mini-ITX Motherboard Review

1. Introduction2. Board Layout and Features3. Testing Methodology4. Tests: CPU Related5. Tests: Memory Related6. Tests: Gaming Related7. Tests: Motherboard Features Performance8. Overclocking, VRM Temps & Power Consumption9. Closing Thoughts10. View All Pages

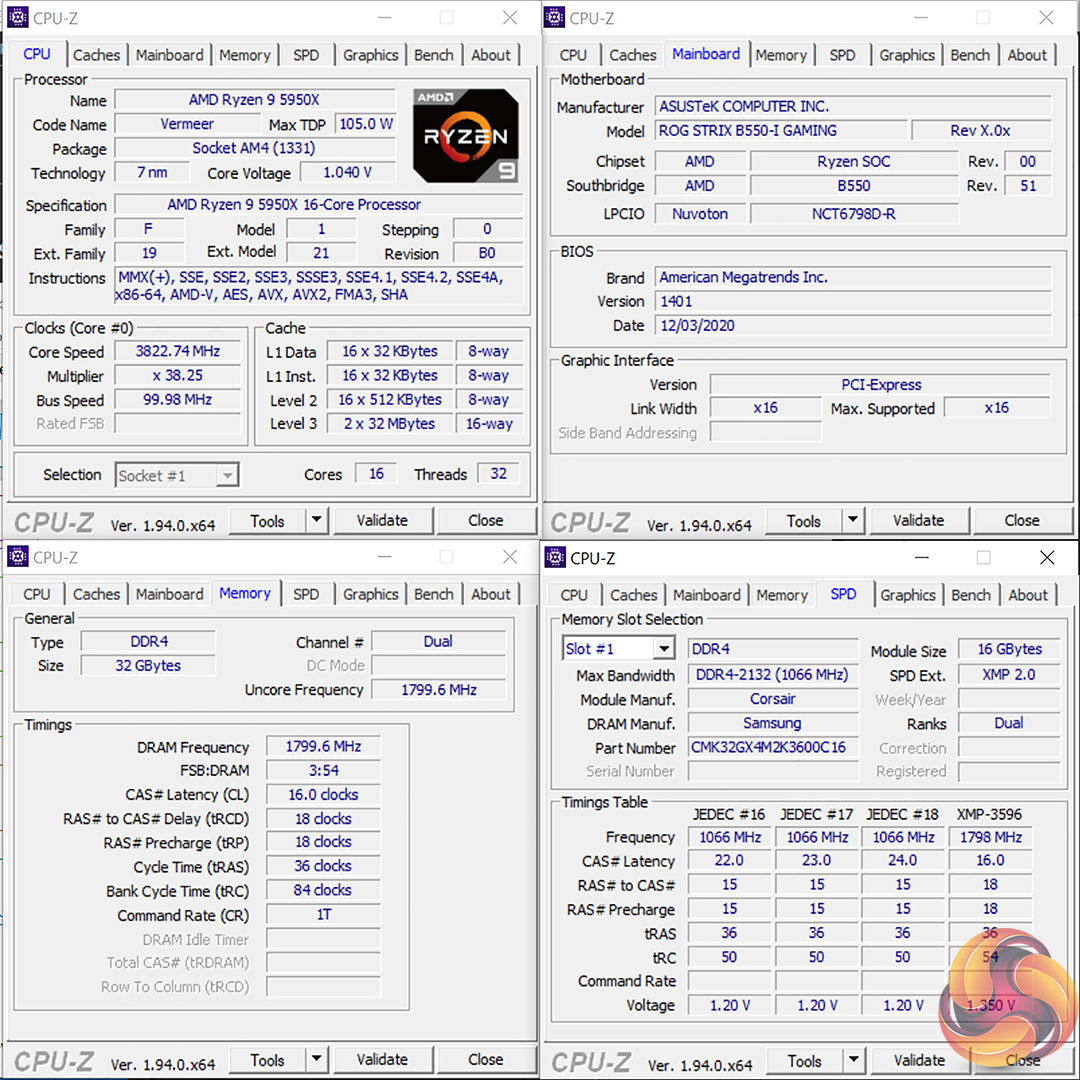

We will be outlining the ASUS ROG STRIX B550-I Gaming motherboard’s performance with the AMD Ryzen 9 5950X CPU, 32GB of 3600MHz C16 DDR4 memory, and a Gigabyte RTX 3080 Eagle OC graphics card.

AM4 Motherboard Test System:

• Processor: AMD Ryzen 9 5950X.
• Memory: 32GB (2x16GB) Corsair Vengeance LPX 3600MHz 16-18-18-36 DDR4 @ 1.35V.
• Graphics Card: Gigabyte RTX 3080 Eagle OC.
• System Drive: WD_Black SN750 PCIe 3.0 x4 NVMe M.2 SSD.
• Games and Test SSD: Aorus 2TB PCIe Gen 4 M.2 SSD.
• CPU Cooler: Fractal Celsius+ S28 Prisma 280mm AIO (full speed fans and pump to eliminate thermal throttling).
• Power Supply: Seasonic Prime TX-1000 1000W.
• Case: Lian Li Open-air Test Bench.
• Operating System: Windows 10 Pro 64-bit.

BIOS Version:

• 1401 (latest at the time of testing).

Comparison Motherboards:

• Gigabyte X570 Aorus Master.

Tests:

• Cinebench R20 – All-core & single-core CPU benchmark (CPU)
• Blender 2.90 – All-core rendering of the Classroom benchmark (CPU)
• SiSoft Sandra – Memory bandwidth (Memory)
• AIDA64 – Memory bandwidth, memory latency (Memory)
• 3DMark TimeSpy – Time Spy (1440p) test (Gaming)
• F1 2020 – 1920 x 1080, Ultra High quality preset with TAA, DX12 (Gaming)
• Shadow of the Tomb Raider – 1920 x 1080, Highest quality preset, no AA, DX12 version (Gaming)
• CrystalDiskMark– Storage transfer rates (Motherboard)
• Rightmark Audio Analyzer 6.4.5 – Record and playback test using a line-in to line-out loopback with a 3.5mm audio cable (Motherboard)
• HWiNFO – System sensor monitoring during stress test (Temperatures & Power Consumption)
