Shuttle XPC Nano NC02U5 Barebones Review

1. Introduction2. Packaging and Bundle3. Shuttle XPC Nano NCO2U54. Testing Methodology5. Testing: CPU6. Testing: GPU7. Testing: System-related8. Testing: M.2 and USB Interfaces9. Testing: Thermal Dynamics and Power Consumption10. Closing Thoughts11. View All Pages

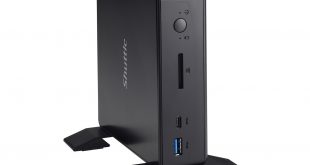

Built around the Skylake Core i5-6200U processor, the Shuttle XPC Nano NC02U5 is perhaps most interesting because it supports a 2.5in disk drive. Whereas most barebones kits typically have just a single spare M.2 connector, the XPC Nano NC02U5 allows users to install any 2.5in drive of their choice – potentially greatly increasing the available storage space.

Over the past few months, we have reviewed a number of mini-PCs. First there was the Gigabyte BRIX Gaming (review HERE), then the latest BRIX with a Kaby Lake CPU (HERE), and most recently a dinky Chromebox from ASUS (HERE). Today, however, we are look at a different option – the Shuttle XPC Nano NC02U5.

In this review, we put the XPC Nano NC02U5 through its paces, assessing build quality, performance and practicality before giving a final verdict.

Specification:

Chassis

• Dimensions: 142 x 142 x 42 mm (LWH) = 835 ml
• Weight: 0.4 kg net, 1.2 kg gross
• Includes vertical stand and 75 / 100 mm VESA mount

Processor

• Model: Intel Core i5-6200U (ULV)
• Clock rate: 2.3~2.8 GHz
• L1/L2/L3 Cache: 128 kB / 512 kB / 3072 kB
• Memory controller: DDR3L-1600 Dual Channel (1.35 V)
• TDP wattage: 15 W maximum
• Intel HD graphics 520 (Intel HD Gen. 9)
• Supports simultaneous dual-display output

Power Adapter

• External 65 W power adapter (fanless)
• Input: 100~240 V AC, 50/60 Hz, max. 1.6 A
• Output: 19 V DC, max. 3.42 A, max. 65 W

Memory support

• 2x 204-pin SO-DIMM slot
• Supports DDR3L-1600 (PC3-12800) SDRAM at 1.35 V
• Maximum of 16GB per SO-DIMM, total of 32GB maximum memory supported

Connectivity

• Supports one Serial ATA hard disk or one SATA SSD drive in 6.35 cm / 2.5″ format
• Integrated SD card reader
• M.2 Slot for SSDs (PCIe or SATA) (type 2242, 2260, 2280).
• Gigabit LAN
• Built-in M.2-2230-A/E WLAN card and internal antenna
• Front panel connectors: USB 3.0 type A, USB 3.0 type C, SD card reader (supports SD, SDHC, SDXC)
• Back Panel connectors: DisplayPort 1.2, HDMI 1.4b, 2x USB 2.0, Gigabit LAN (RJ45), combo audio jack, DC input, 2x perforation for optional external WLAN antennas
• Left Side connectors: Serial RS232 COM port (D-Sub, 9-pin)

RRP: £398.40 inc. VAT
