Air Cooler Challenge – 7 Way Round-Up

Deepcool Assassin II

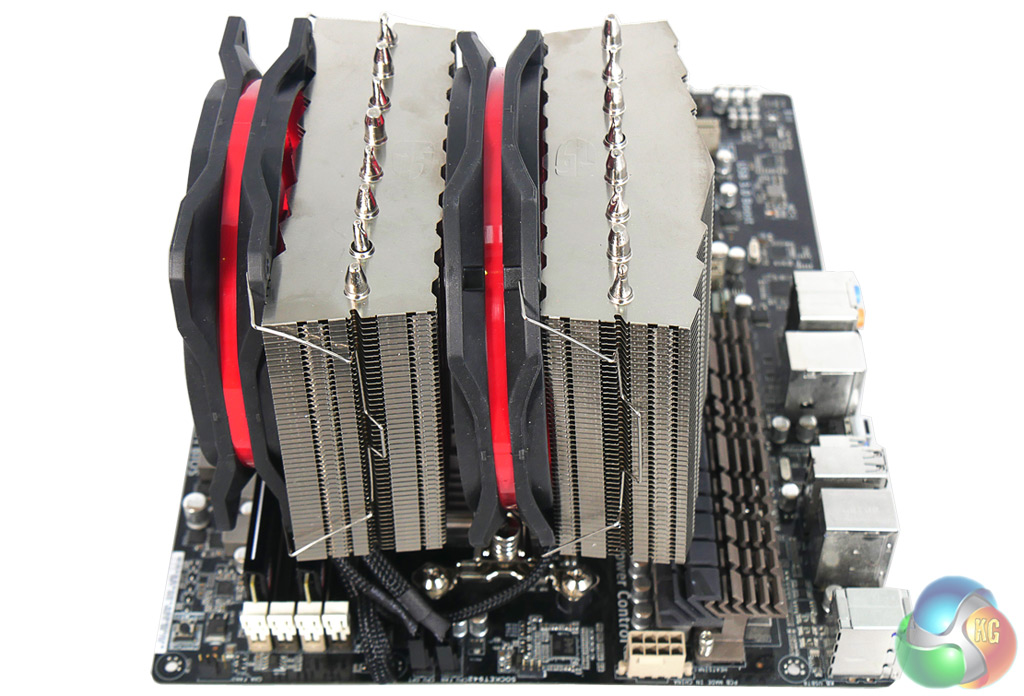

Deepcool Assassin II is the biggest, baddest and most extreme cooler in this round-up and was £69.99 at the time of testing. It weighs in a shade under 1.5kg and stands 167mm tall. This imposing height is due to the 140mm fan located in between the two towers of the cooler and to add to the cooling potential there is a second fan on the outside of tower which is 120mm.

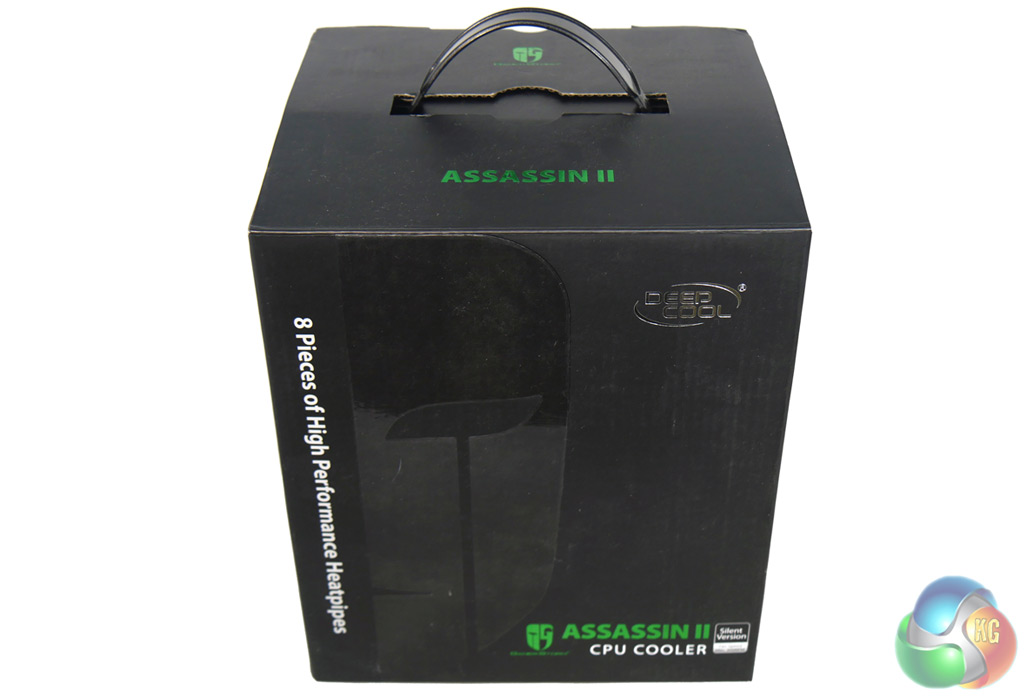

The cooler arrived in a funky matt black package with metallic green printing and foam inserts to protect the cooler in transit. Despite these precautions the two towers of our cooler lean towards each other in a manner that presumably was not intended by the factory and while there was still plenty of room for the central fan it didn’t really look correct.

The two fan cables are quite long so there is scope to tuck them away neatly or to hook them up to convenient fan headers but you also get a PWM hub in the package as an accessory so you have plenty of options.

Installing the cooler isn’t quite as straightforward as we might like. The basics are good, so the four mounting studs are retained in the back plate with rubber caps that prevent components from dropping out of place during installation. The tricky part is that you need a long thin screwdriver that can reach the two mounting screws located between the two finned bodies.

When the Assassin II is running the two rubberised Deepcool GF fans are impressively quiet.

Specification

Intel LGA115x support Yes
Intel LGA1366 support Yes
Intel LGA2011 support Yes
Intel LGA775 support Yes
AMD AMx/FMx support Yes
TDP rating 220W
Base of cooler Copper
Heat sink Split aluminium tower
Heatpipes 8 x 6mm heatpipes
Supplied fans Deepcool GF 1x 140mm, 1x 120mm
PWM Yes
Fan speed 300rpm-1,400rpm
Fan bearings Dual FDB
Air flow 70cfm
Noise levels 17.8dBA-27.3dBA
Dimensions 167mm (H) x 143mm (W) x 158mm (D)
Weight 1479g
Warranty Three years

Product Shots

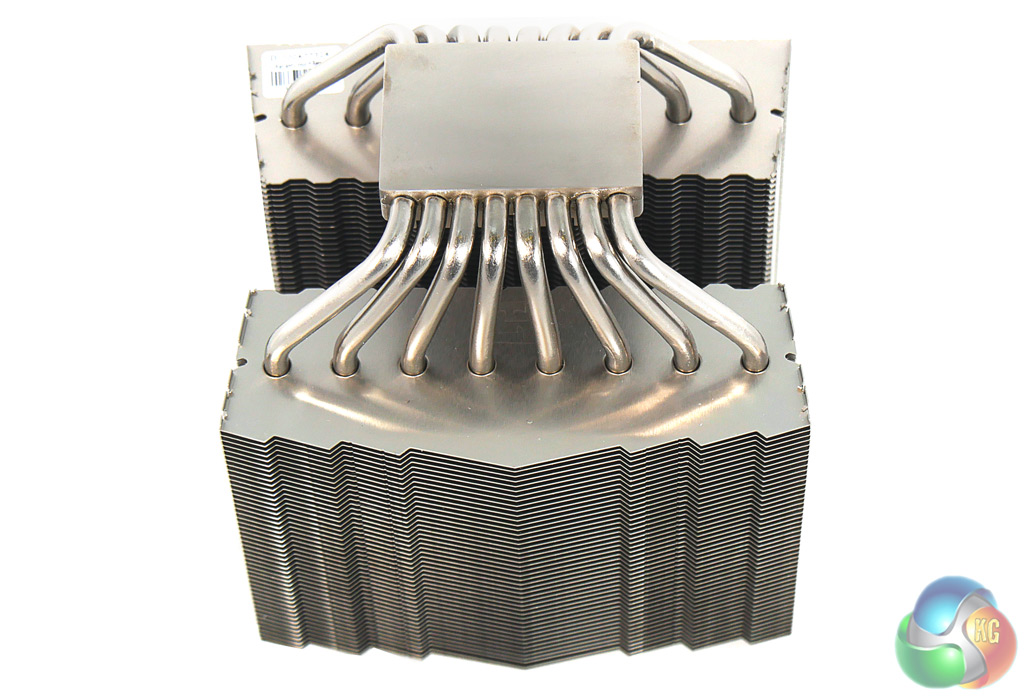

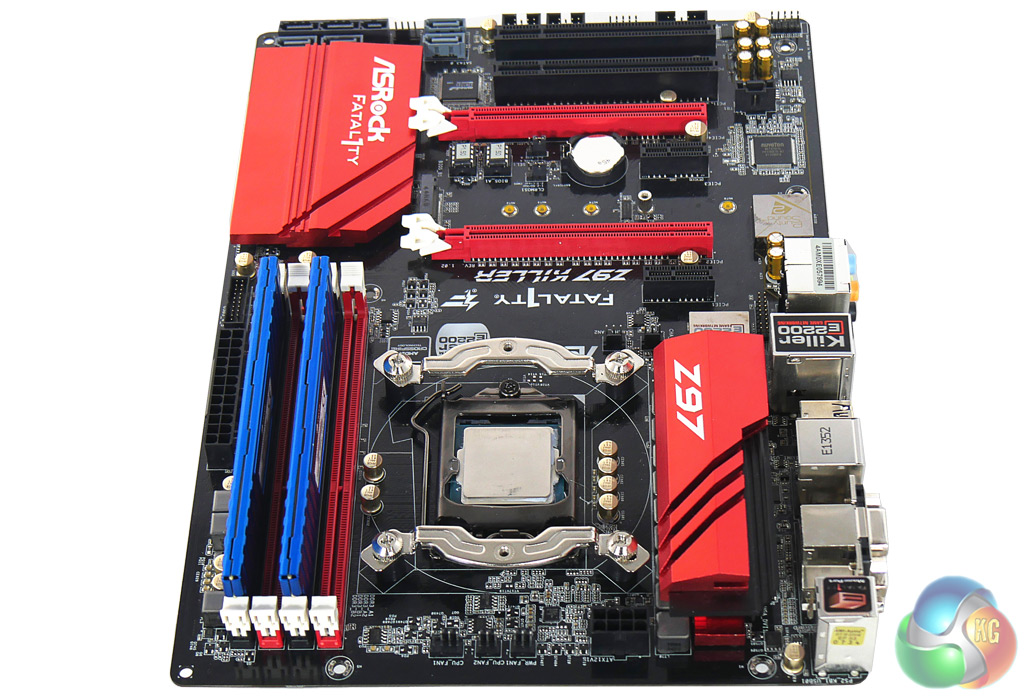

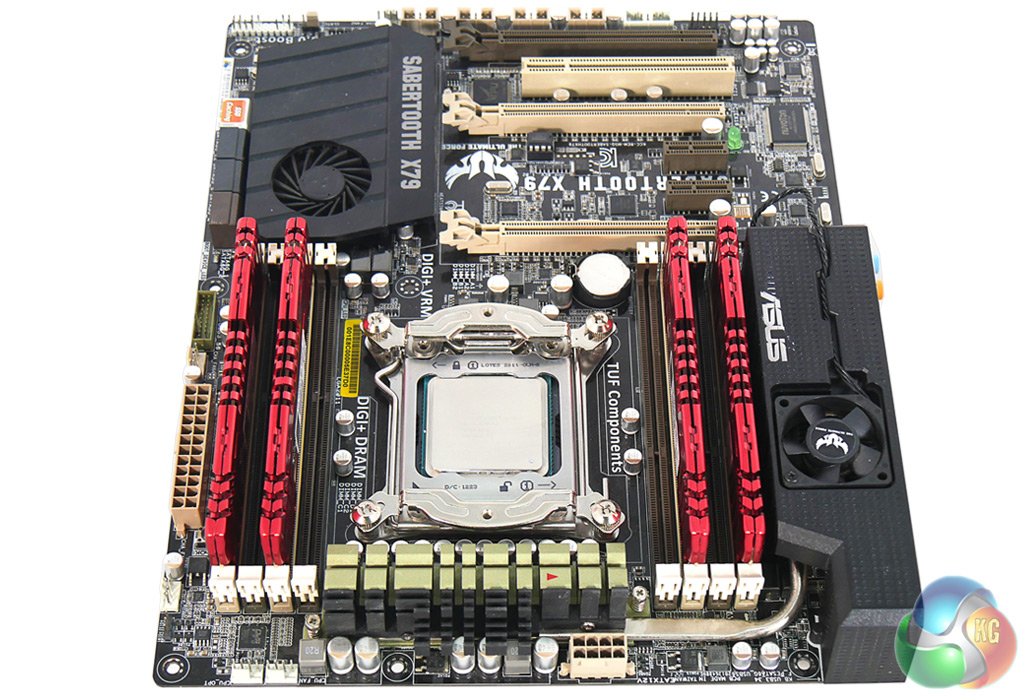

KitGuru-Cooler-Round-Up-Deepcool-Assassin-II-Box KitGuru-Cooler-Round-Up-Deepcool-Assassin-II-Bare-Cooler KitGuru-Cooler-Round-Up-Deepcool-Assassin-II-Mounting-Bracket-3 KitGuru-Cooler-Round-Up-Deepcool-Assassin-II-Mounting-Bracket-2

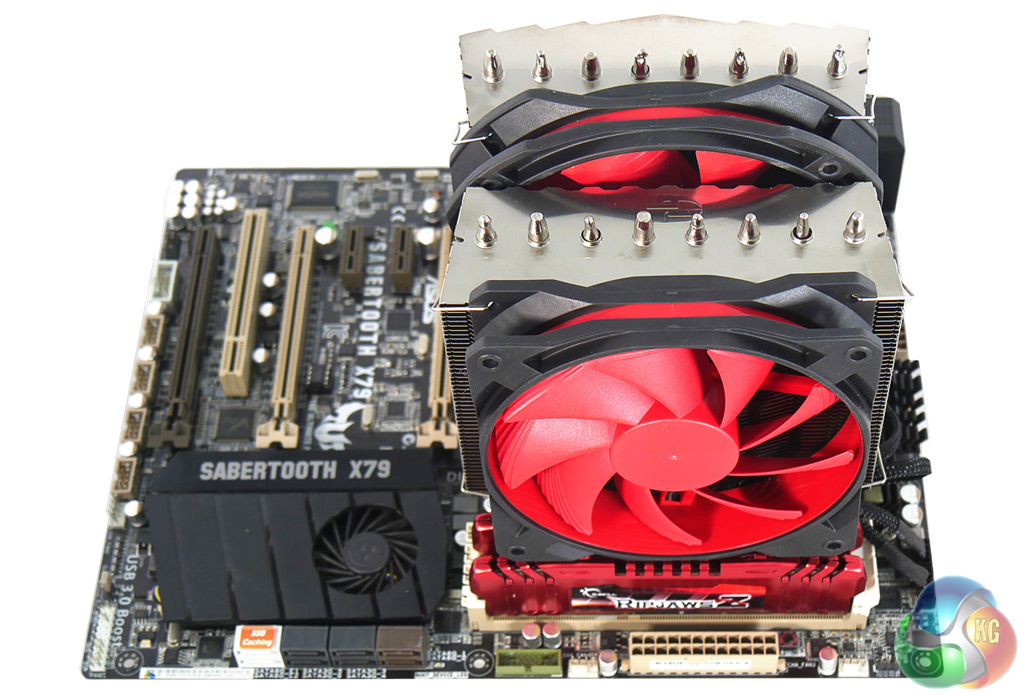

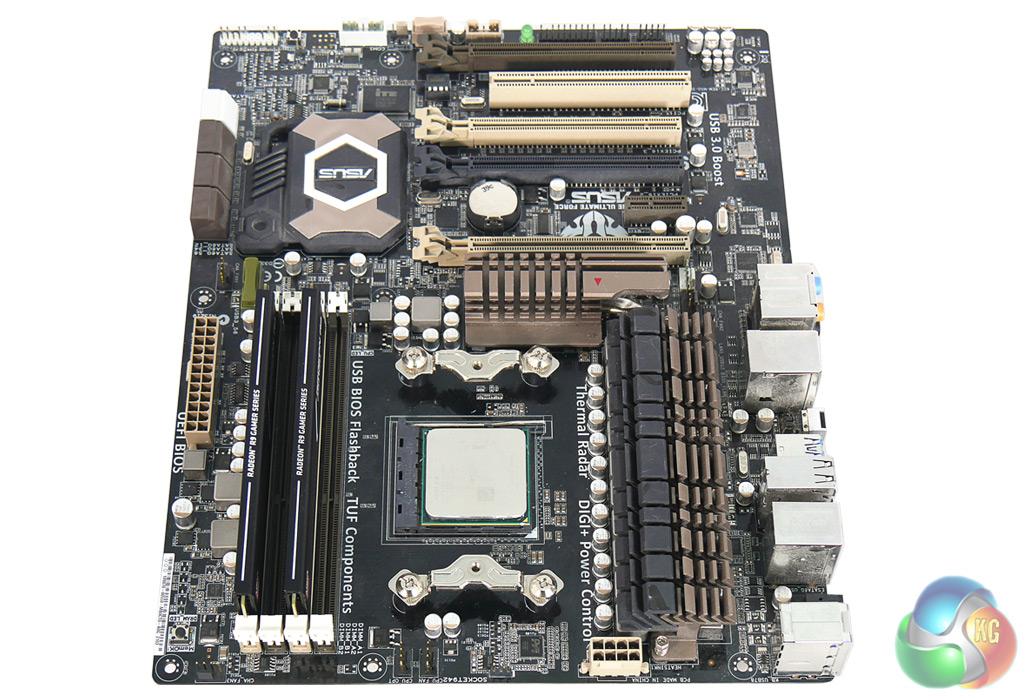

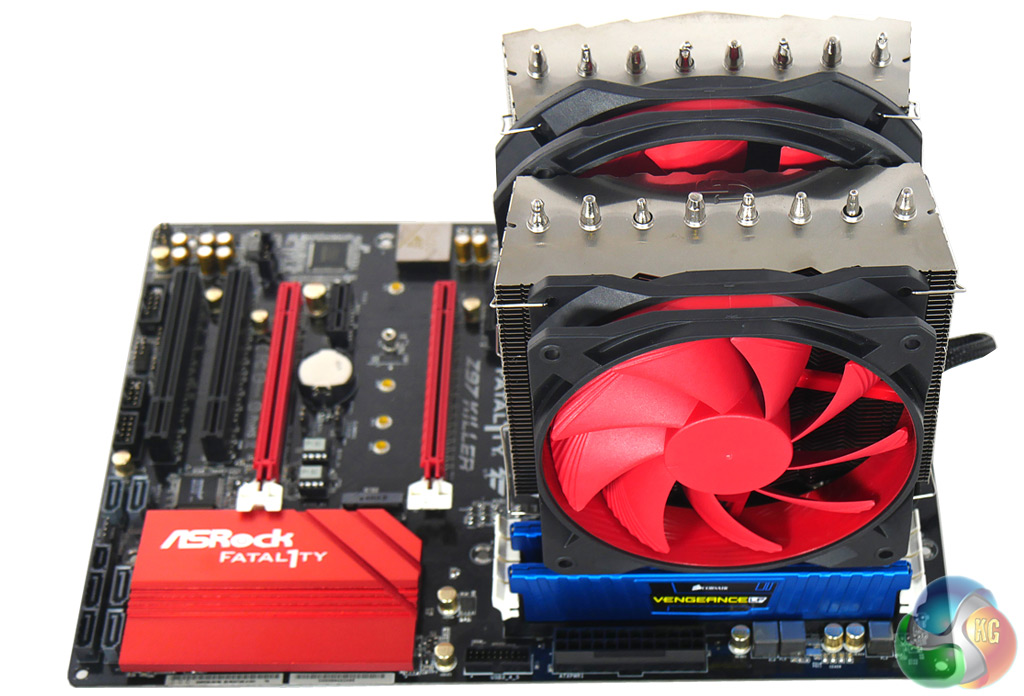

KitGuru-Cooler-Round-Up-Deepcool-Assassin-II-Mounting KitGuru-Cooler-Round-Up-Deepcool-Assassin-II-Full-Deployment-2-end KitGuru-Cooler-Round-Up-Deepcool-Assassin-II-Mounted KitGuru-Cooler-Round-Up-Deepcool-Assassin-II-Full-Deployment-2

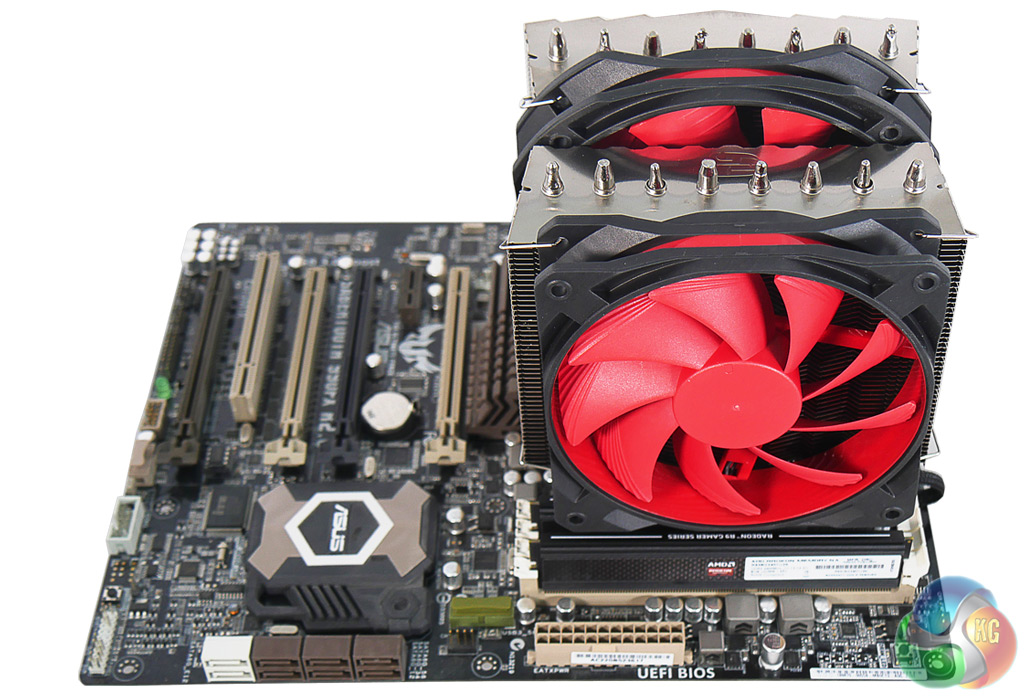

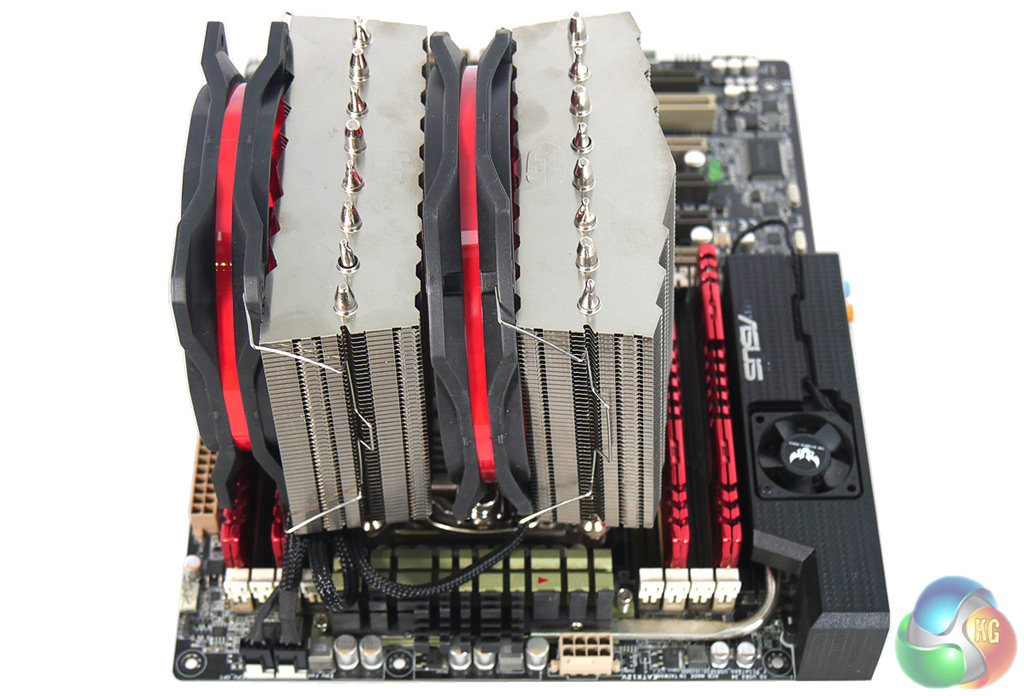

KitGuru-Cooler-Round-Up-Deepcool-Assassin-II-Full-Deployment-3 KitGuru-Cooler-Round-Up-Deepcool-Assassin-II-Full-Deployment

Testing
Assassin II is the best performer in the round-up however the temperature figures were only slightly lower than the much cheaper Phanteks PH-TC12DX. Where the Assassin II scores especially highly is that the fans operate at a low speed and are very quiet. No doubt the array of eight heat pipes plays a significant part. We never saw the Deepcool fans operate above 1,200rpm even though they have a maximum speed of 1,400rpm.

Deepcool Assassin II Temps KitGuru

KitGuru Says: An epic cooler that is big, heavy, quiet and expensive however it is overkill for most people.

Score: 8 out of 10
