The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously.
Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.
The official headline Sequential speeds for the AS6208T are 398MB/s for reads and 355MB/s for writes in RAID 5 mode, but this is with all four Ethernet ports in Link Aggregation mode. Single port speeds are quoted as 112MB/s for reads and 111MB/s for writes.

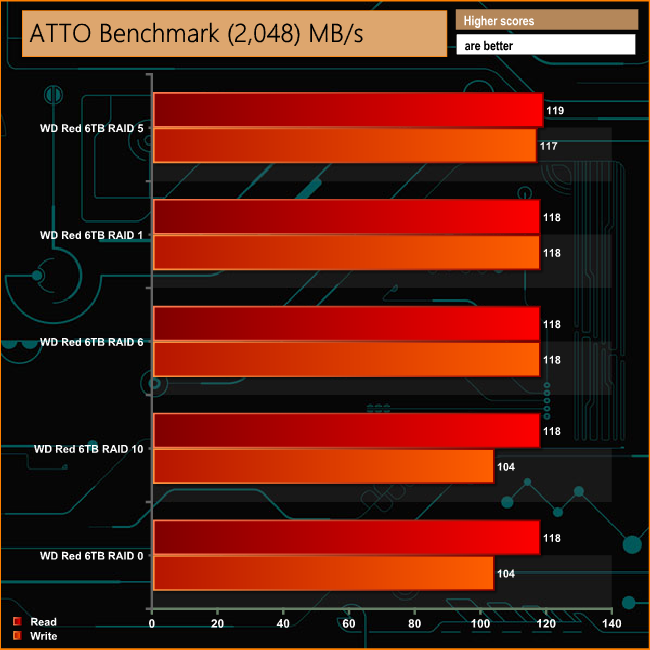

Using the ATTO benchmark we could not only confirm those single port figures for RAID 5 Sequential performance but saw a very small increase on the official figures at 119MB/s for reads and 117MB/s for writes.
The only two occasions that we saw figures below the official single connection rates was in the write performance for both RAID 0 and RAID 10.
