We will outline the performance increases that can be obtained from using the Gigabyte Z170X-Gaming 7 motherboard to overclock our system. Our overclocked processor frequency was 4.8GHz and memory speed was maintained at 3200MHz.

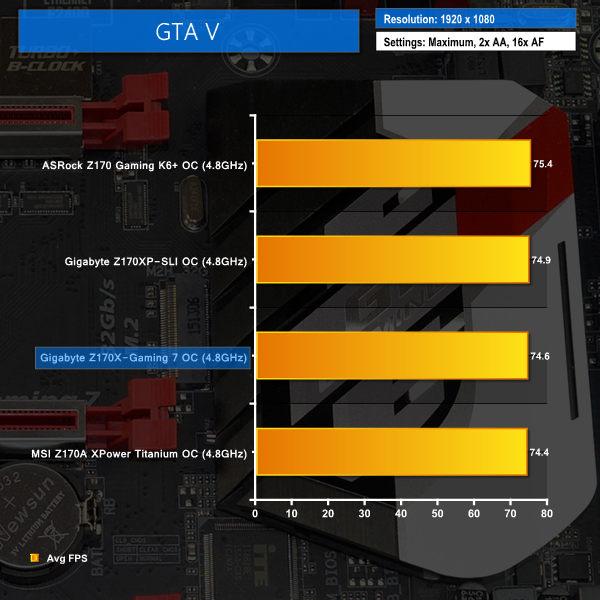

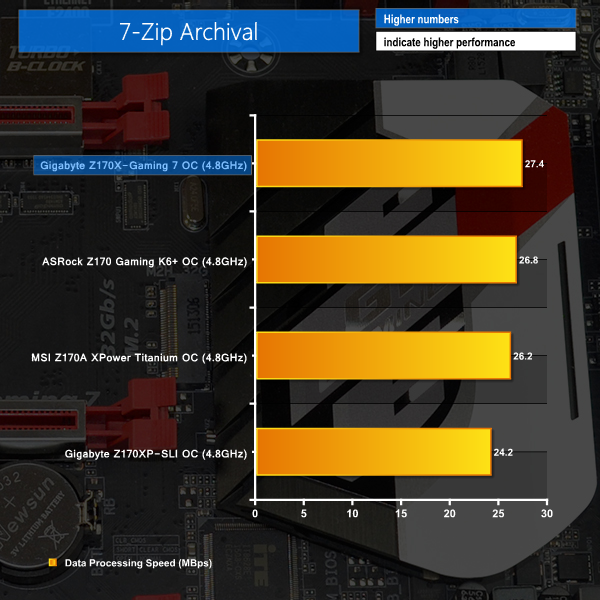

As a performance comparison, we have included the overclocked results from three other Z170 motherboards. The maximum overclocked configuration achieved with each board was a 4800MHz (48 x 100MHz) processor frequency and 3200MHz CL16 memory speed.
Using Gigabyte's Z170X-Gaming 7 to overclock the system garners solid performance improvements that are competitive with alternative Z170 motherboards.
