MSI Z270 Gaming Pro Carbon Motherboard Review


command-center-1_1-copy command-center-1_2-copy command-center-2-copy

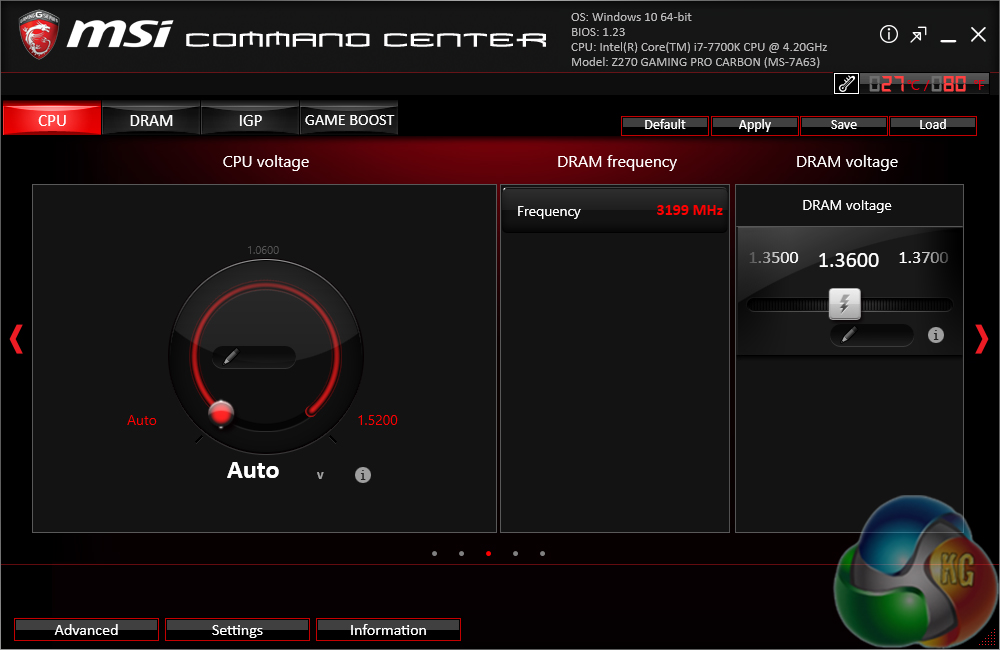

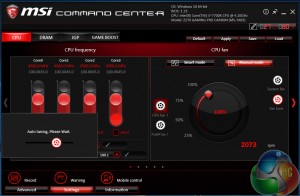

Command Center is the bread-and-butter of MSI’s OS-based software tools. Primary functionality of the system can be controlled here, including adjustment of multiplier ratios, clocks and voltages, and MSI’s Game Boost overclocking preset.

command-center-3-copy command-center-4-fan-tune-copy

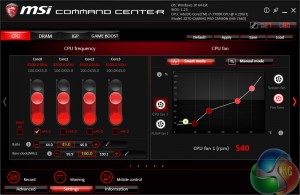

Fan tuning options in Command Center are good. There is an auto fan tuning mode which allows the system to adjust the fan speed curve to its perceived optimal design. User adjustment of the fan speed curves is also possible using a 4-point graph.

command-center-break-1-copy command-center-break-2-copy command-center-break-3-copy command-center-break-6-copy

command-center-break-4-copy command-center-break-7-copy command-center-break-5-copy

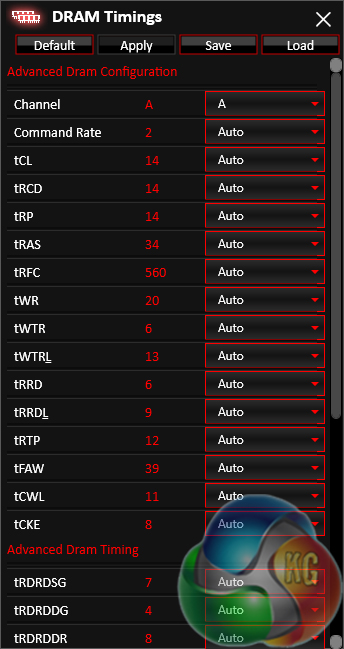

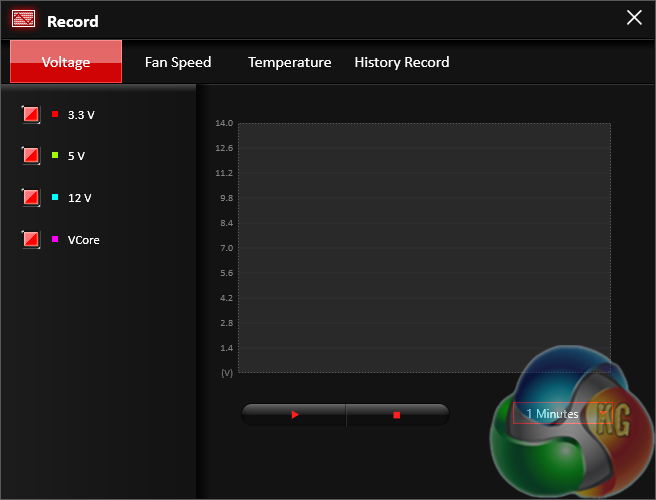

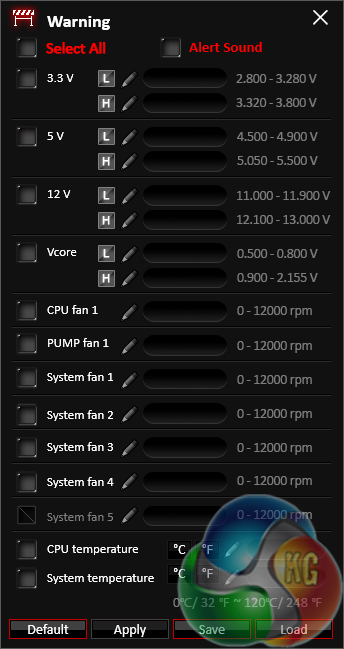

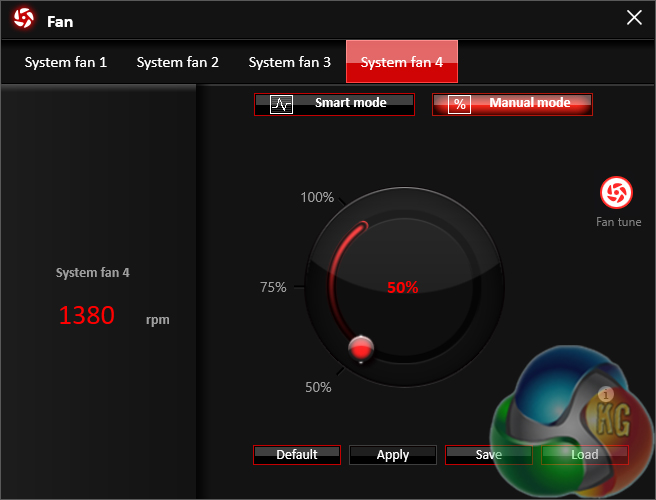

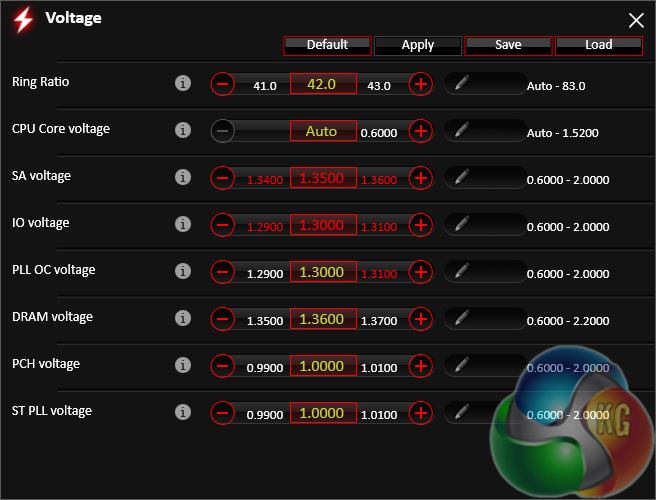

Break-out tabs display information and adjustment options for voltages, ratios, and fan speeds. DRAM timings also get their own break-out page.

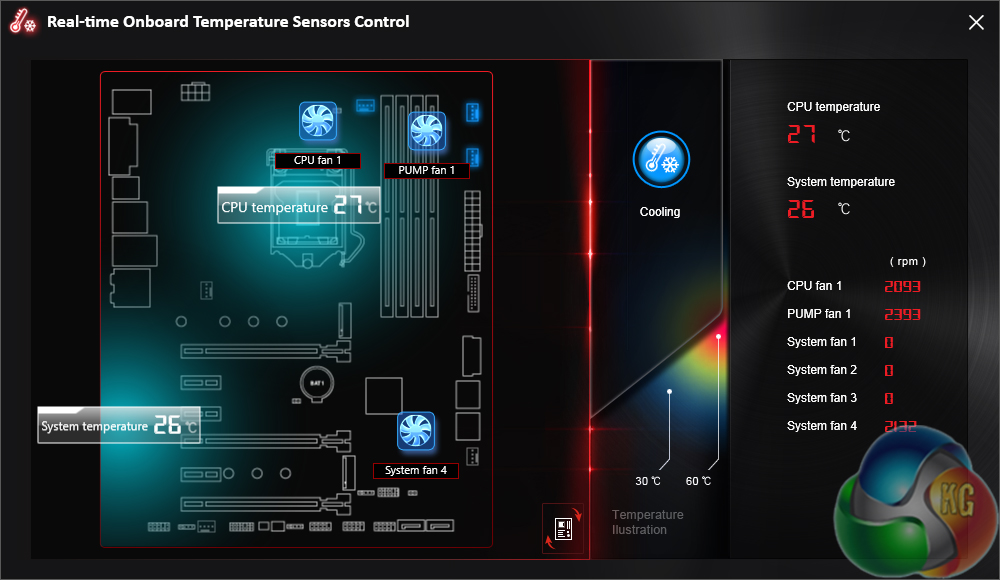

MSI’s temperature sensor page is good although the number of reading points is limited to just two – the CPU and system. This page also shows which fans are connected and a temperature illustration can be set to give visual interpretation of system behaviour.

gaming-app-1-copy gaming-app-2-copy gaming-app-3-copy gaming-app-4-copy

gaming-app-5-copy gaming-app-6-copy

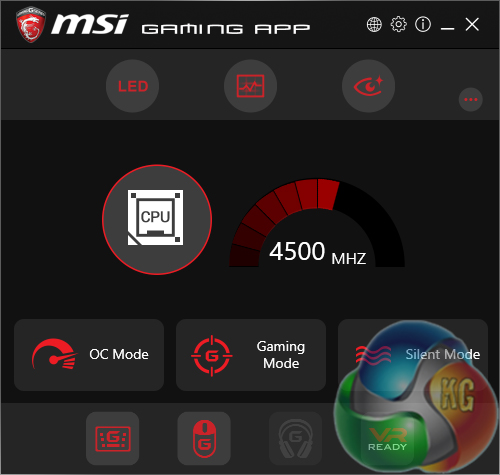

Gaming App is used to control a number of different operating modes for the system. Three pre-set modes are available – Gaming, OC, and Silent. The OC mode applies Game Boost, as it is called in the UEFI.

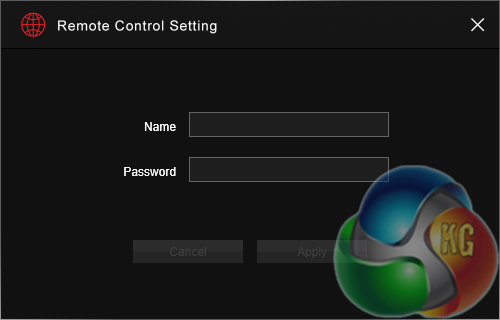

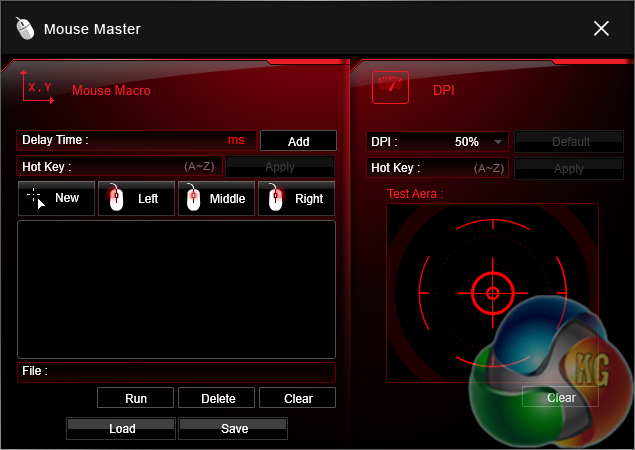

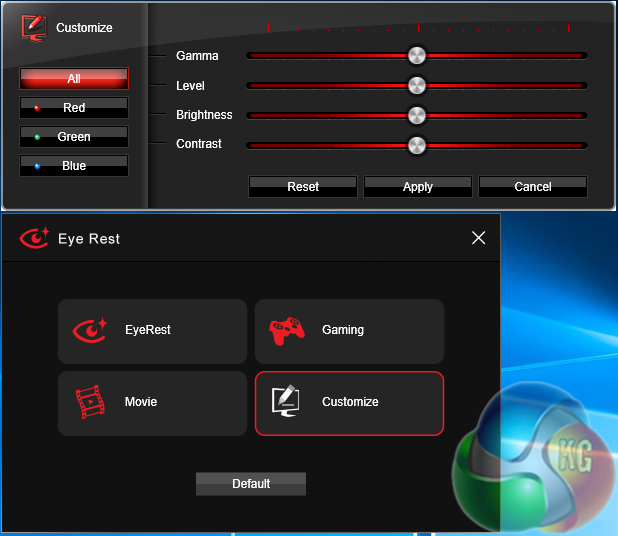

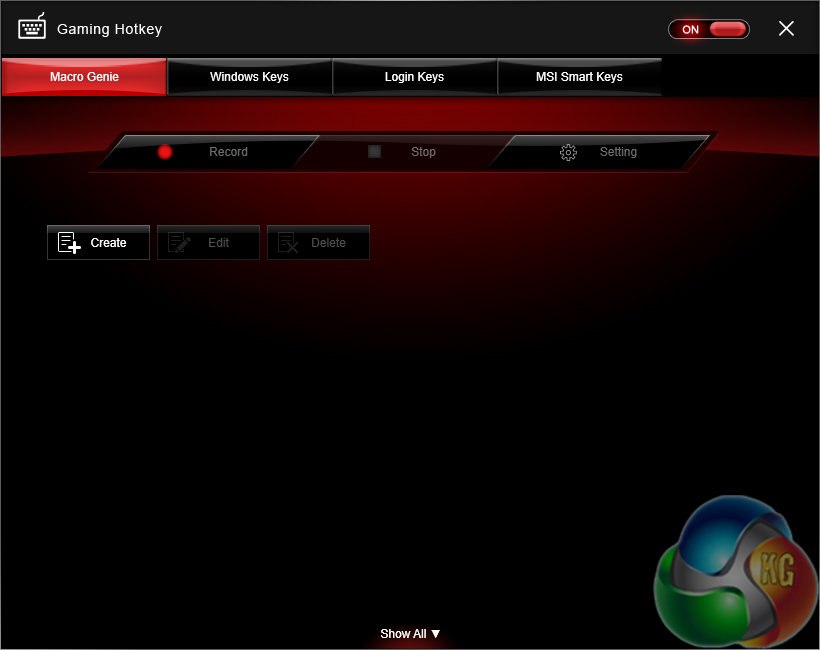

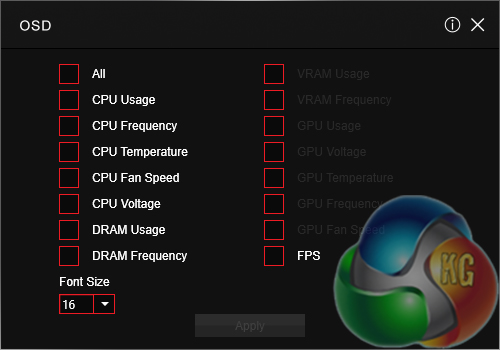

Macros can be set in a dedicated section for both the keyboard and mouse. There’s also an OSD to display system information though it is far less in-depth than RivaTuner that is supplied with MSI Afterburner. A monitor’s colour profile can be adjusted to reduce eye-strain or blue light. There’s also an option for remote control of the system settings.

gaming-app-rgb-1-copy gaming-app-rgb-2-copy gaming-app-rgb-3-copy gaming-app-rgb-4-copy

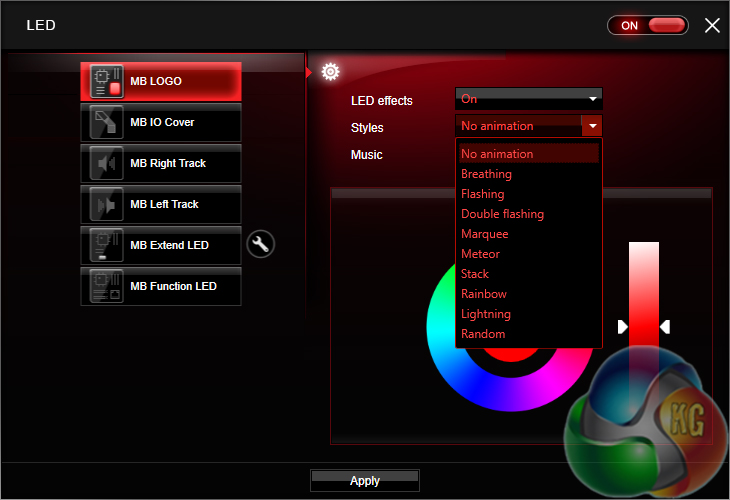

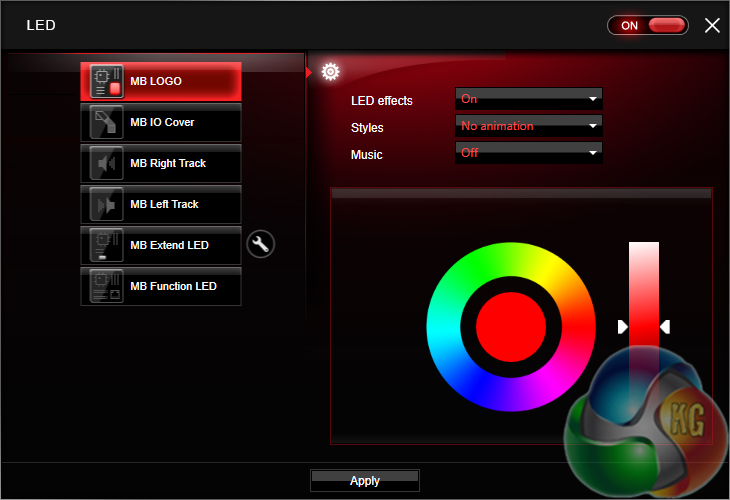

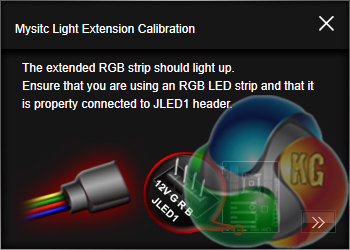

The RGB section of MSI’s Gaming App is where most users are likely to be spending their time. Individual control is given to all four different lighting sections of the motherboard, the 4-pin RGB header, and the motherboard function LEDs (albeit in limited capacity).

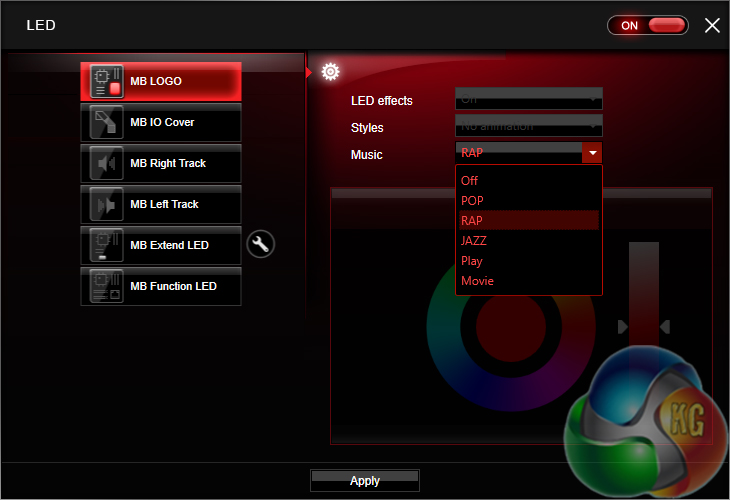

Different lighting modes can be activated, including breathing, flashing, and random behaviour. The lights can also be set to behave in a manner that is associated with different styles of music – for example, the rap mode flashed as if it was following the repetitive backing tune of a rap song.

There is also an option to completely switch off all LED lighting.

MSI’s lighting options in the OS software are good. They aren’t quite as good as Gigabyte’s and ASUS’ alternatives which offer intelligent operation modes for the LED colours to react to system behaviour such as temperatures. MSI’s interface is, however, an improvement over ASRock’s offering that we saw on the Fatal1ty Z270 Gaming K6.

gaming-lan-manager-1-copy gaming-lan-manager-2-copy gaming-lan-manager-3-copy gaming-lan-manager-4-copy

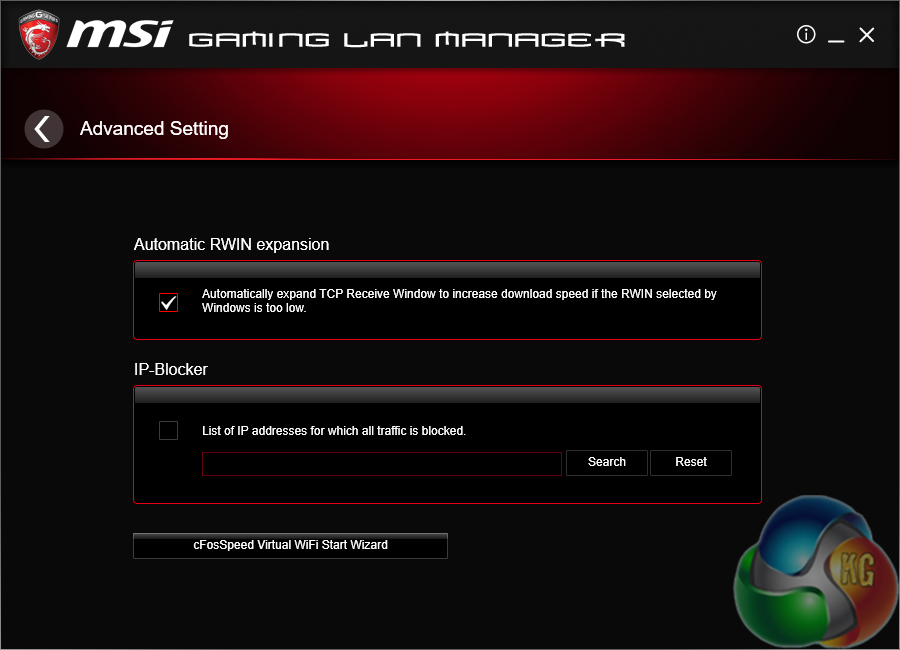

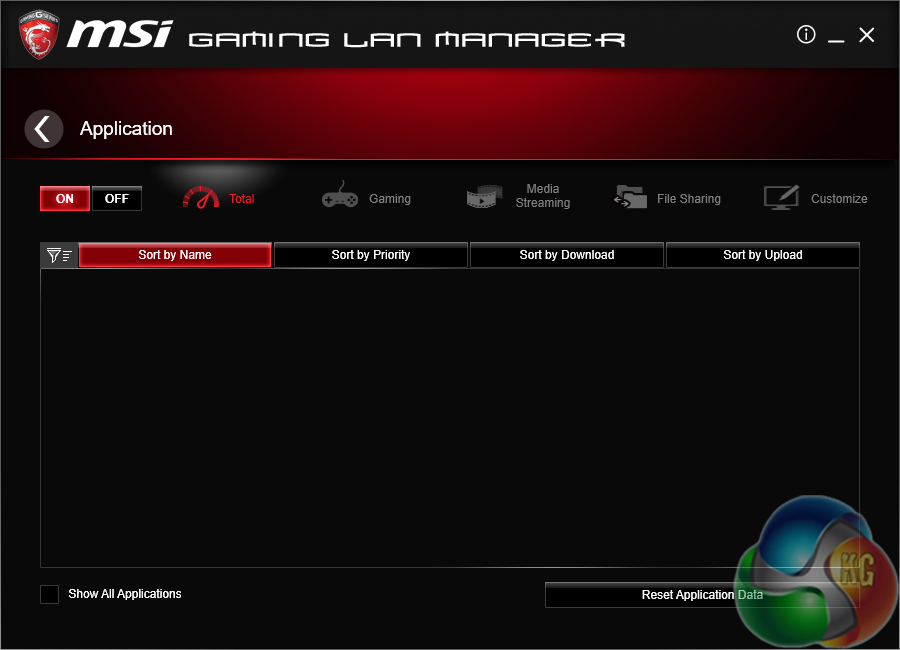

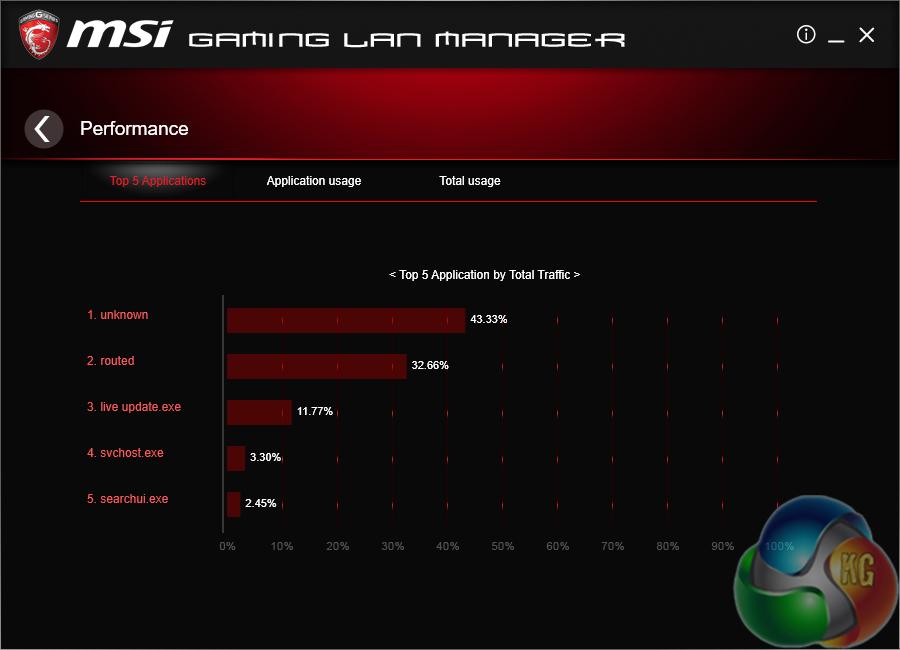

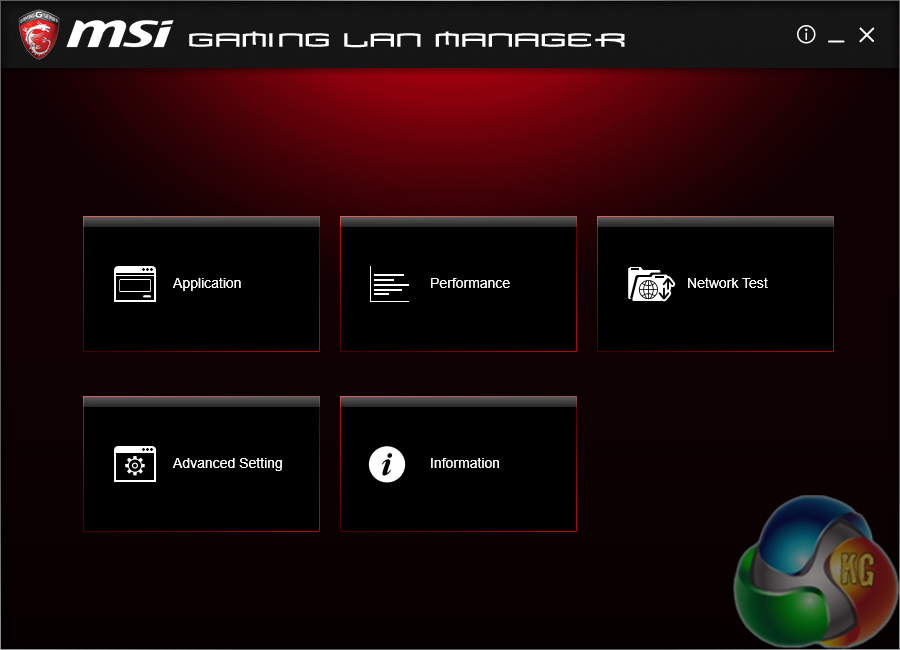

Gaming LAN Manager is essentially MSI’s in-house software that allows the vendor to use an Intel NIC while also retaining some of the control features typically associated with Killer-based offerings. The main benefit is enhanced information delivery so that a user can understand how their system’s network-interacting software is behaving. There’s also an ability to prioritise applications such as games.

ramdisk-1-copy ramdisk-2-copy

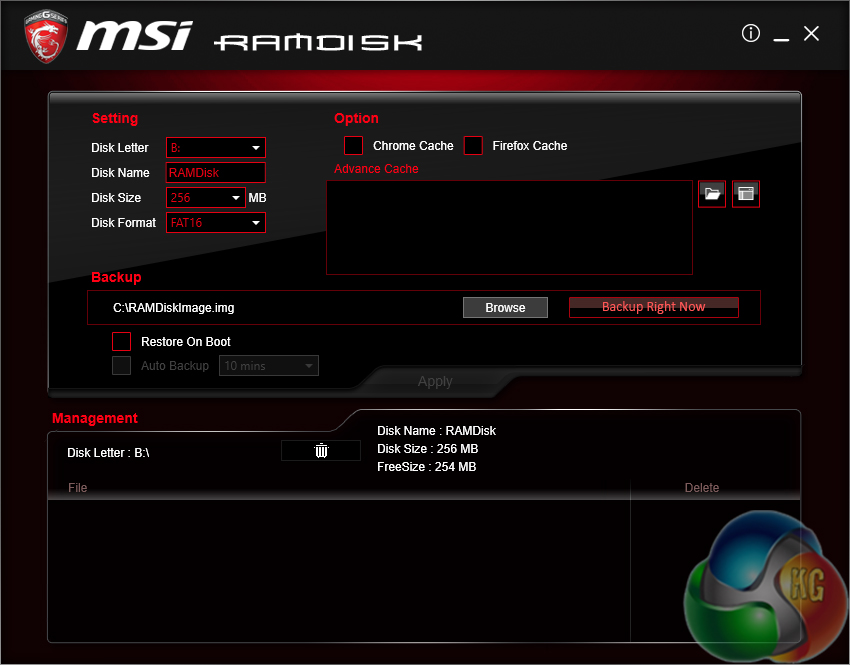

MSI’s RAMdisk does what the title says. The RAM disk size can be set up to a high percentage of system memory. For example, we were able to select a 14.5GB RAM disk with our 16GB of system memory.

The tool also includes options to restore the RAM disk upon boot, back it up to a non-volatile storage device, and set advanced cache for certain options.

x-boost-1-copy x-boost-4-copy x-boost-5-copy x-boost-2-copy

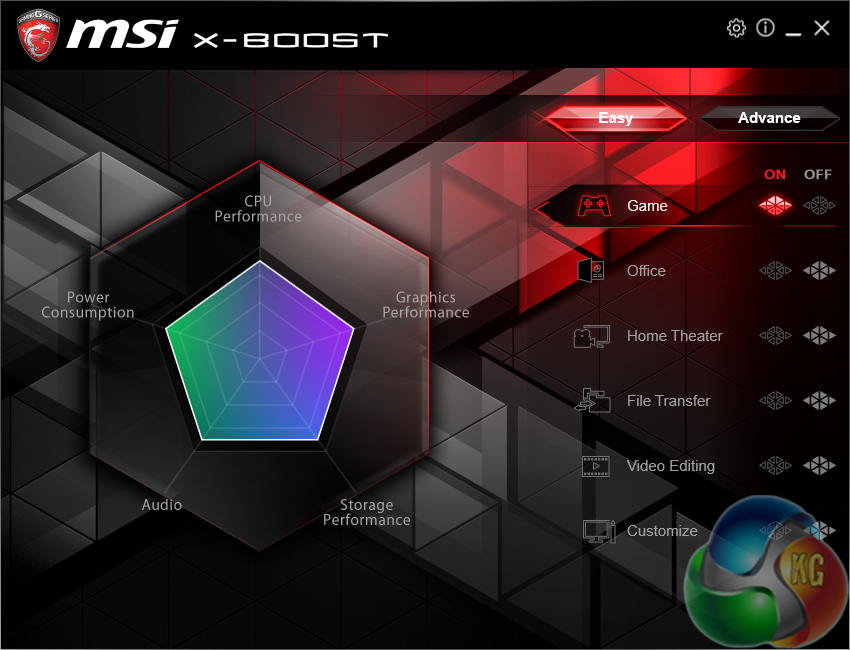

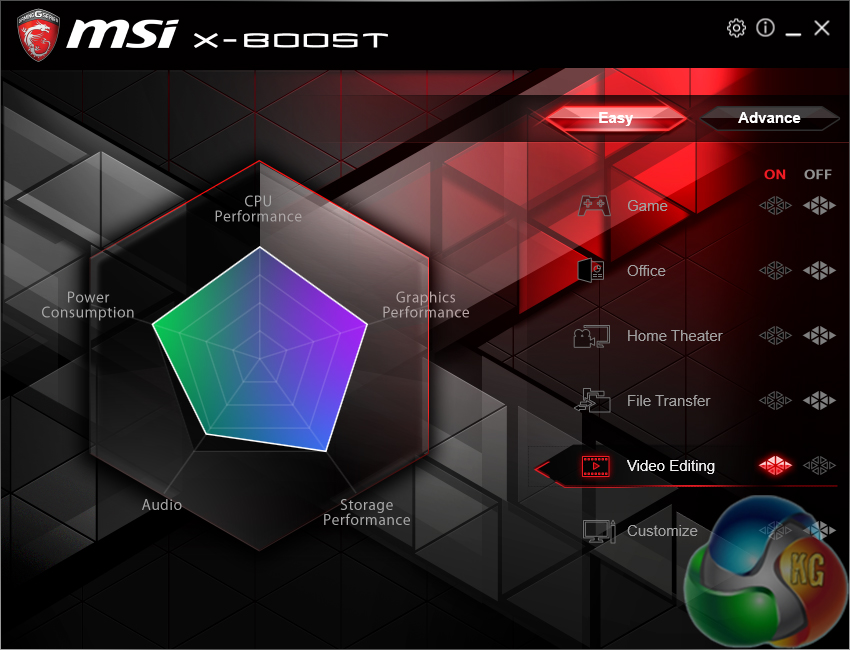

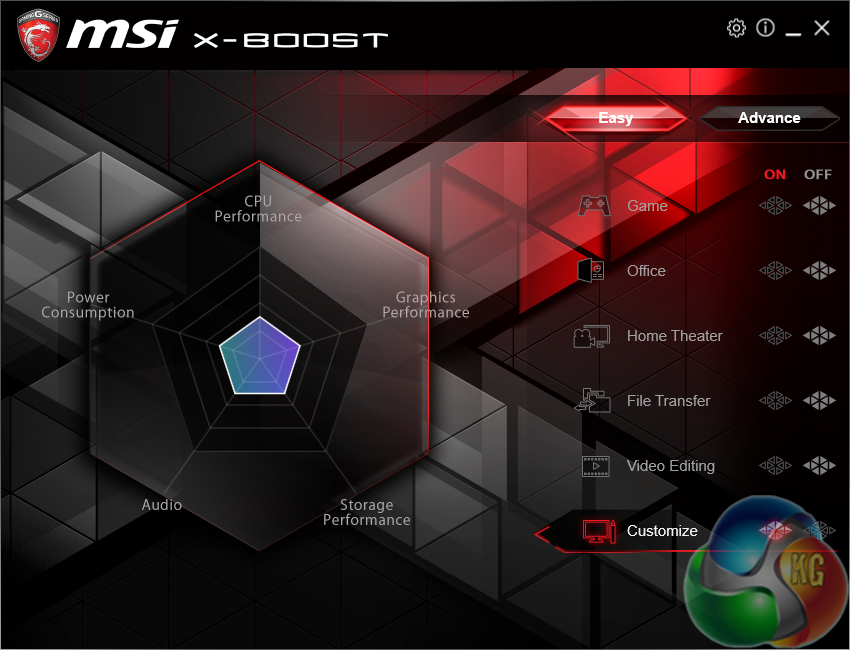

X-Boost features a number of system operation modes that use tweaked settings. There are presets for operations such as gaming and video editing and the option for a user to create their own setting is present. The game mode sets all performance metrics to a high importance while the video editing mode emphasises parameters important to such a task.

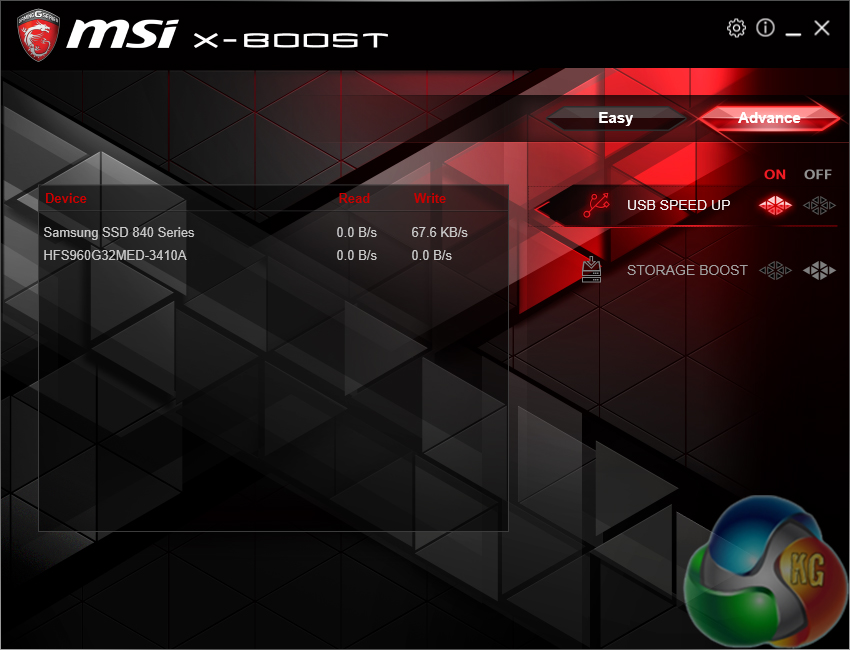

There is also the ability to speed up USB and storage devices. We tested X-Boost and found it to offer little benefit to storage devices other than those based on USB 3.1. Using our USB 3.1 Gen 2 test device with RAID 0 SSDs, X-Boost helped to deliver more consistent transfer rates in our ATTO test.

dpc-latency-tuner-copy fast-boot-go2bios-copy msi-smart-tool-2-copy msi-smart-tool-1-copy

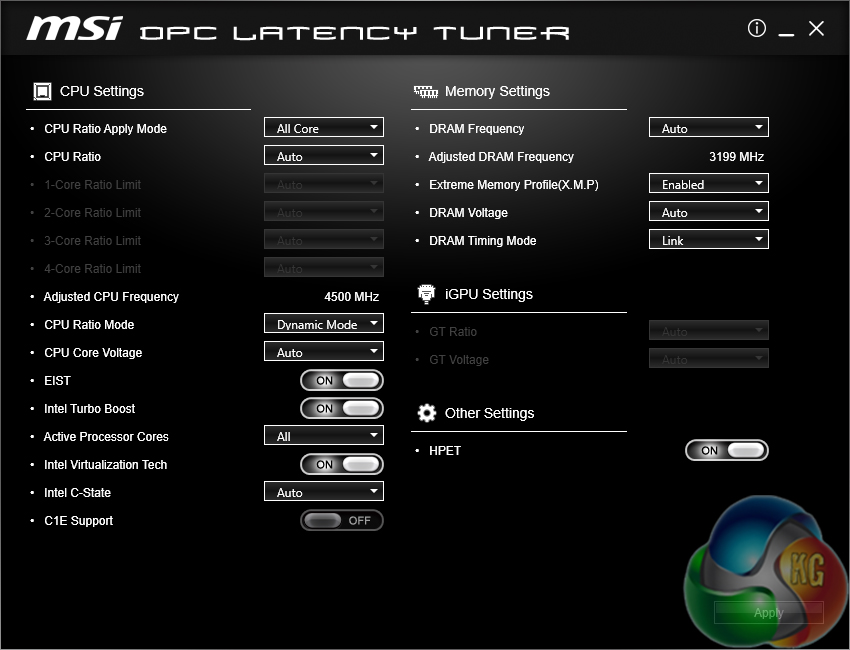

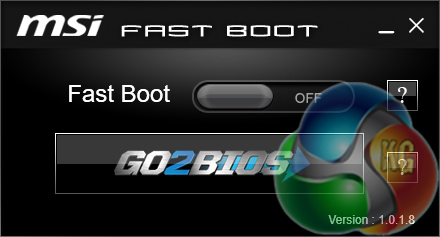

DPC Latency Tuner allows system settings to be tweaked in order to optimise DPC latency. This tool could be useful for those with audio editing tasks. Go2BIOS is a quick and easy way of entering the BIOS, without missing the option due to such fast system POST using newer Windows versions.

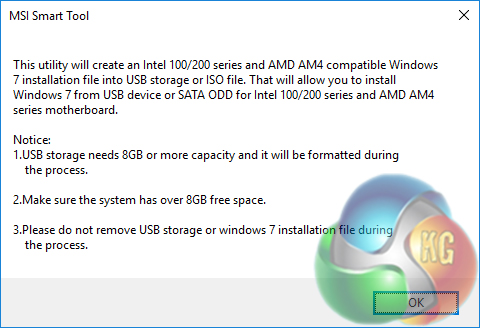

Smart Tool can be used to create a bootable USB for Windows 7 installation. As a side note, there’s a reference to the AMD AM4 platform in one section of MSI’s Smart Tool app.

live-update-1-copy live-update-2-copy

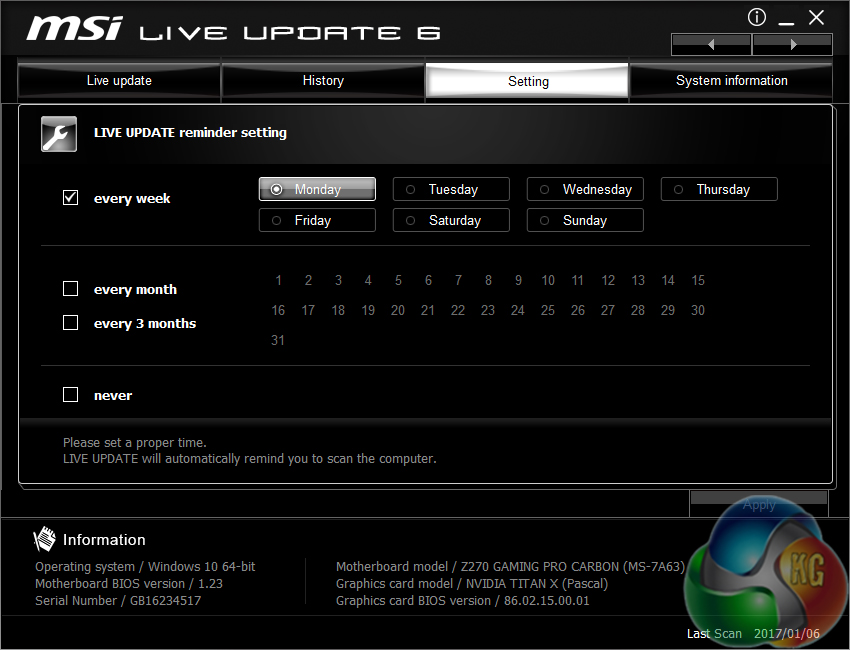

Live Update 6 is a tool that can update utility apps and drivers. I do not like the presence of unrequested software installations such as Norton and Google toolbar.

nahimic-1-copy nahimic-2-copy nahimic-3-copy nahimic-4-copy

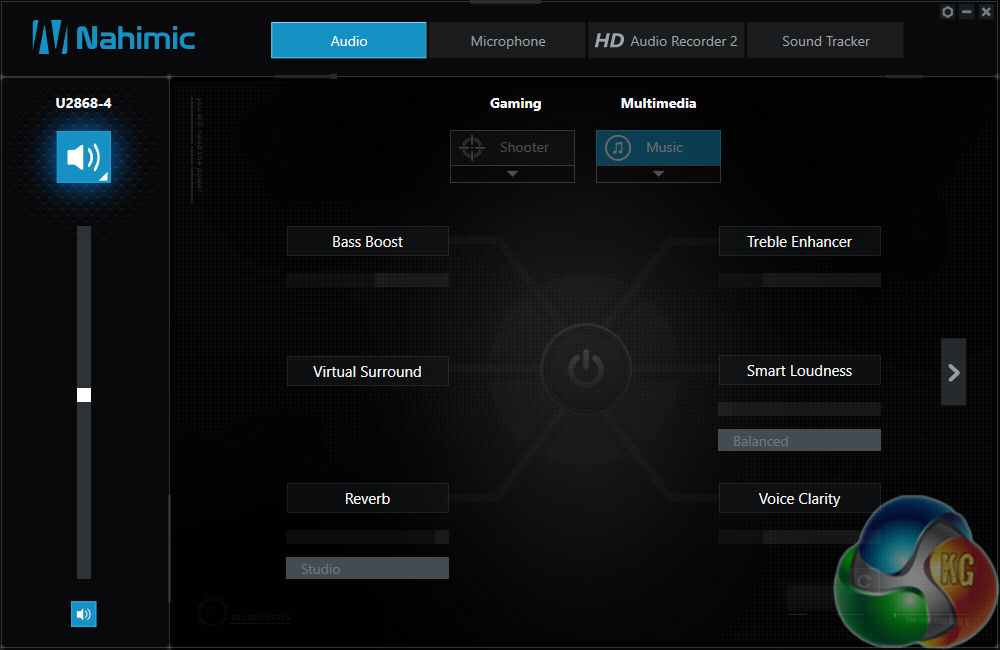

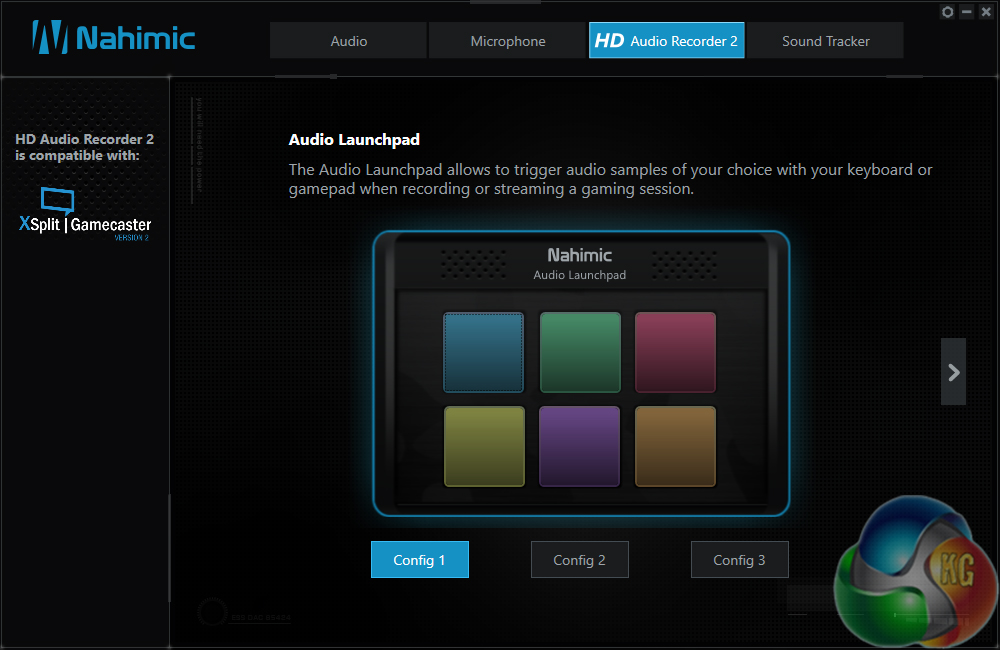

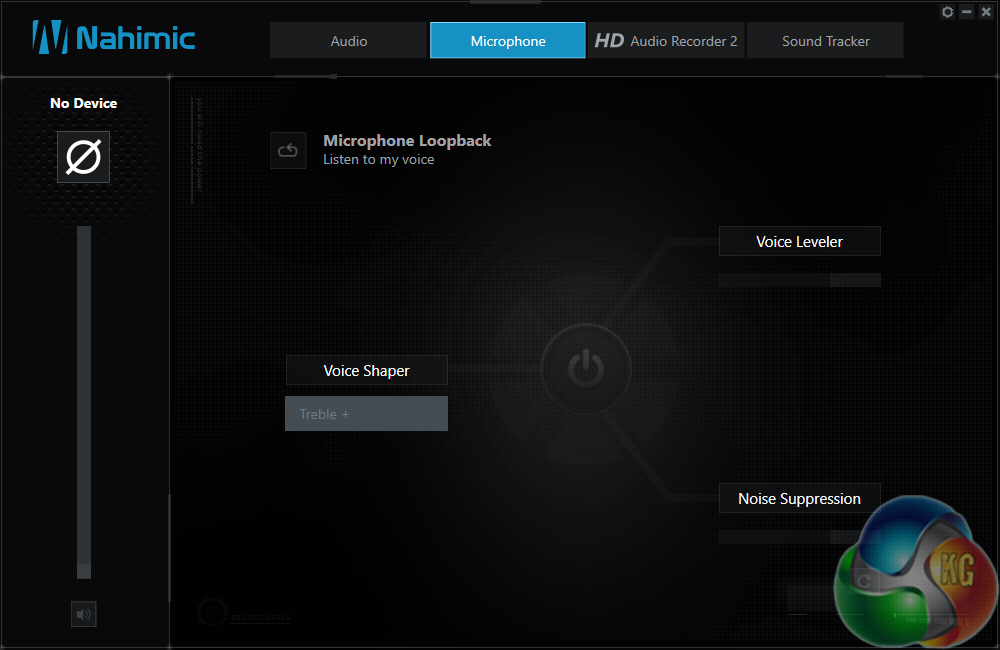

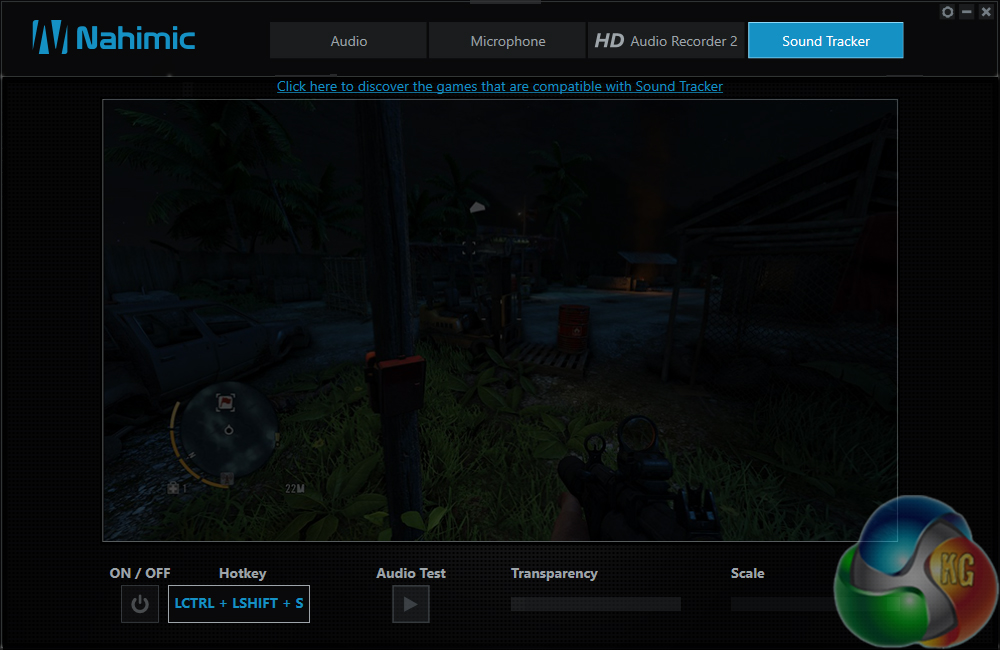

Nahimic audio software gives a user control over the operation of the board’s audio system. Presets relating to gaming and multimedia content consumption can be set. There is also control for the microphone and interaction of the audio system with XSplit Gamecaster. Sound Tracker is a visual tool that can display the direction of sound sources during gaming. This is similar to Sonic Radar on competing solutions.

Software Summary:

It would be a significant understatement to say that MSI includes a good number of in-depth software tools. The separate software pages are vast and options are plentiful. I particularly like X-Boost and also the extremely in-depth Command Center.

MSI’s RGB lighting control tool is good but it could be better given that ASUS and Gigabyte offer intelligent operation modes that can adjust colour based on temperatures, for example. I would have also liked to see a software manager app like App Center by Gigabyte and AI Suite by ASUS. A lot of software means a lot of shortcuts or location to manage – one umbrella utility would aid ease of navigation to different software offerings.

Overall, MSI’s variety and quality of OS-based software apps is superb.
